TC1014-5.0VCT, TC1014-5.0VCT713, TC1015

Table of contents:
Info of TC1014-5.0VCT
Info of TC1014-5.0VCT713
Info of TC1015

TC1014-5.0VCT, TC1014-5.0VCT713, TC1015 Selling Leads, Datasheet

MFG:Microchip Technology (VA) Category:Integrated Circuits (ICs) Package Cooled:09+ D/C:18000

TC1014-5.0VCT, TC1014-5.0VCT713, TC1015 Datasheet download

Five Points

Part Number: TC1014-5.0VCT713

Category: Integrated Circuits (ICs)

MFG: Microchip Technology (VA)

Package Cooled: 09+

D/C: 18000

Description: IC CMOS LDO 5.0V 50MA SOT23-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

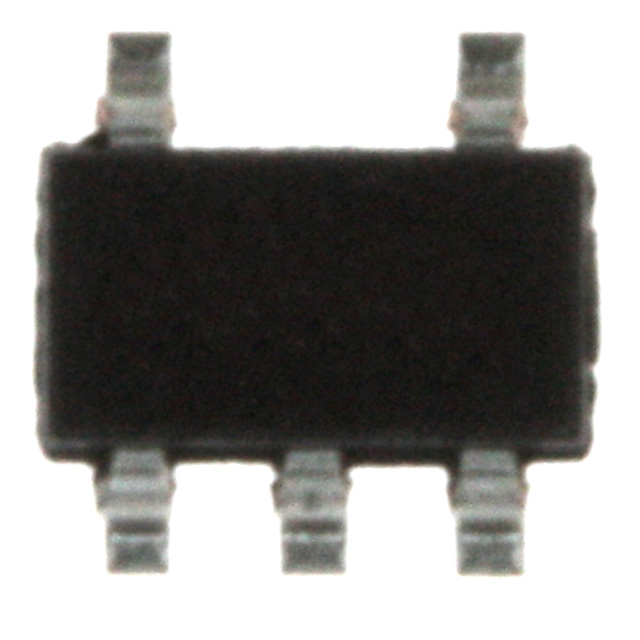

TC1014-5.0VCT713 Parameters

Technical/Catalog Information	TC1014-5.0VCT713
Vendor	Microchip Technology (VA)
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SOT-23-5
Packaging	Digi-Reel?
Regulator Topology	Positive Fixed
Current - Output	50mA
Voltage - Output	5V
Operating Temperature	-40°C ~ 125°C
Voltage - Input	2.7 ~ 6 V
Number of Regulators	1
Current - Limit (Min)	50mA
Current Short Circuit (Isc)	300mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TC1014 5 0VCT713 TC101450VCT713 TC10145 0VCT713DKR ND TC101450VCT713DKRND TC10145.0VCT713DKR

TC1015 General Description

The TC1014, TC1015, and TC1185 are high accuracy (typically ±0.5%) CMOS upgrades for older (bipolar) low dropout regulators such as the LP2980. Designed specifically for battery-operated systems, the devices' CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 50A at full load (20 to 60 times lower than in bipolar regulators!). Key features for the devices include ultra low-noise operation (plus optional Bypass input), fast response to step changes in load, and very low dropout voltage, typically 85mV (TC1014), 180mV (TC1015), and 270mV (TC1185) at full load. Supply current is reduced to 0.5A (max) and VOUT falls to zero when the shutdown input is low. The devices also incorporate both over-temperature and over-current protection. The TC1014, TC1015, and TC1185 are stable with an output capacitor of only 1F and have a maximum output current of 50mA, 100mA, and 150mA, respectively. For higher output versions, see the TC1107, TC1108, and TC1173 (IOUT = 300 mA) data sheets.

TC1015 Maximum Ratings

Input Voltage...................................................... 6.5V
Output Voltage...........................(-0.3V) to (V_IN +0.3V)
Power Dissipation...............Internally Limited (Note 7)
Maximum Voltage on Any Pin .........V_IN +0.3V to -0.3V
Operating Temperature Range........-40 < T_J < 125
Storage Temperature......................... -65 to +150

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied.

Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.

TC1015 Features

` Extremely Low Supply Current (50A, Typ.)
` Very Low Dropout Voltage
` Choice of 50mA (TC1014), 100mA (TC1015) and 150mA (TC1016) Output
` High Output Voltage Accuracy
` Standard or Custom Output Voltages
` Power Saving Shutdown Mode
` Reference Bypass Input for Ultra Low-Noise Operation
` Over Current and Over Temperature Protection
` Space-Saving 5-Pin SOT-23A Package
` Pin Compatible Upgrades for Bipolar Regulators

TC1015 Typical Application

· Battery Operated Systems
· Portable Computers
· Medical Instruments
· Instrumentation
· Cellular/GSM/PHS Phones
· Linear Post-Regulator for SMPS
· Pagers

TC1015 Connection Diagram
