SZH-002T-P0.5, SZH002TP05, SZH-003T-P0.5 Datasheet download
Category: Connectors
MFG: JST Sales America Inc (VA)
Package Cooled: jst
D/C: 09+

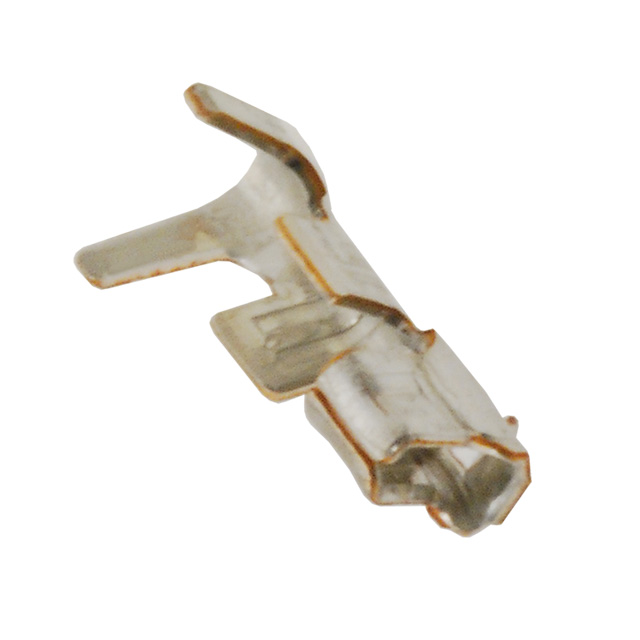

Description: CONN TERM CRIMP ZH 28-32AWG TIN
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | SZH-002T-P0.5 |
| Vendor | JST Sales America Inc |
| Category | Connectors |
| Pin or Socket | Socket |
| Contact Finish | Tin |
| Wire Gauge | 26-28 AWG |
| Contact Termination | Crimp |
| Packaging | Tape & Reel (TR) |
| Type | - |
| Contact Finish Thickness | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SZH 002T P0 5 SZH002TP05 455 1130 2 ND 45511302ND 455-1130-2 |
| Technical/Catalog Information | SZH-003T-P0.5 |
| Vendor | JST Sales America Inc (VA) |
| Category | Connectors |
| Pin or Socket | Socket |
| Contact Finish | Tin |
| Wire Gauge | 28-32 AWG |
| Contact Termination | Crimp |
| Packaging | Cut Tape (CT) |
| Type | - |
| Contact Finish Thickness | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SZH 003T P0 5 SZH003TP05 455 1281 1 ND 45512811ND 455-1281-1 |
The SZH-003T-P0.5 is designed as one kind of ZH connector which requires only about 45% of the installation space required by the standard JST 2.0mm(.079") pitch connector.The contact retention lances on the resilient housing allow visual confirmation of contactlock-in for easy and secure insertion.The dimple at the center of the contact ensure positive contact and low contact resistance at all times,even when the connector is subjected to vibration or distortion.Therefore this connector is ideal for use under low current,low voltage conditions.
The header is fully shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or by otherwise mismating the connectors.The same shrouded header can be used for either the ZR IDC-style connector or the ZH crimp style connector.This allows buth types of connector to be used interchangeably without replacing the header.
The absolute maximum ratings of the SZH-003T-P0.5 can be summarized as:(1)current rating:1.0A AC,DC(AWG #26);(2)voltage rating:50V AC,DC;(3)temperature range:-25 to +85(including temperature rise in applying electrical current);(4)contact resistance:initial value/20m max.after environmental testing/30m max.;(5)insulation resistance:500 m min.;(6)withstanding coltage:500V AC/min.;(7)applicable wire:AWG #32 to #26.
