ST202CWR, ST202E, ST202EA

Table of contents:
Info of ST202CWR
Info of ST202E
Info of ST202EA

ST202CWR, ST202E, ST202EA Selling Leads, Datasheet

MFG:STMicroelectronics (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP-16L D/C:06+

ST202CWR, ST202E, ST202EA Datasheet download

Five Points

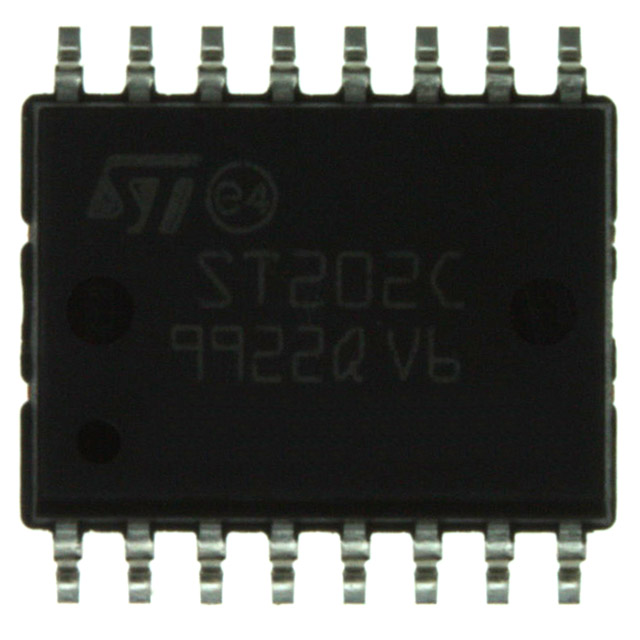

Part Number: ST202CWR

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics (VA)

Package Cooled: SOP-16L

D/C: 06+

Description: IC DRIVER/RCVR RS232 5V 16-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ST202CWR Parameters

Technical/Catalog Information	ST202CWR
Vendor	STMicroelectronics (VA)
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	2/2
Type	Transceiver
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	16-SOIC (7.5mm Width)
Packaging	Digi-Reel?
Protocol	RS232
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ST202CWR ST202CWR 497 7919 6 ND 49779196ND 497-7919-6

ST202E General Description

The ST202E/ST232E are a 2 driver 2 receiver devices designed for RS-232 and V.28 communications in harsh enviroments. Each transmitter output and receiver input is protected against ± 15KV electrostatic discharge (ESD) shocks. The drivers meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120Kbps, when loaded in accordance with the EIA/TIA-232Especification.

The ST202E/232E use a single 5V supply voltage.

The ST232E operates with four 1mF capacitors.

ST202E Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	-0.3 to 6	V
V+	Extra Positive Voltage	(V_CC- 0.3) to 14	V
V-	Extra Negative Voltage	-14 to 0.3	V
T_IN	Transmitter Input Voltage Range	-0.3 to (V_CC + 0.3)	V
R_IN	Receiver Input Voltage Range	±30	V
T_OUT	Transmitter Output Voltage Range	(V- - 0.3) to (V+ + 0.3)	V
R_OUT	Receiver Output Voltage Range	-0.3 to (V_CC + 0.3)	V
T_SCTOUT	Short Circuit Duration on TOUT	infinite
T_stg	Storage Temperature Range	-65 to +150

ST202E Features

·ESDPROTECTIONFOR RS-232 I/OPINS: ± 15 KVHUMAN BODYMODEL
·GUARANTEED120 kbpsDATE RATE
·GUARANTEEDSLEWRATE RANGE3 to 30V/ms
·OPERATEFROMA SINGLE 5VPOWER SUPPLY

ST202E Connection Diagram
