MFG:OSRAM Opto Semiconductors Inc Category:Optoelectronics Package Cooled:CDIP D/C:dc96
SLY2016, SLZTE7R5F, SM_B5GPSW03A Datasheet download
Category: Optoelectronics
MFG: OSRAM Opto Semiconductors Inc
Package Cooled: CDIP
D/C: dc96
Description: INTELLIGENT DISP 4CHAR 5X7 YLW
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SLY2016
File Size: 470374 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SM0030
File Size: 186027 KB
Manufacturer: Valor
Download : Click here to Download
| Technical/Catalog Information | SLY2016 |
| Vendor | OSRAM Opto Semiconductors Inc |
| Category | Optoelectronics |
| Color | Yellow |
| Size / Dimension | 0.78" L x 0.40" W x 0.20" H (19.91mm x 10.16mm x 5.08mm) |
| Millicandela Rating | - |
| Configuration | - |
| Voltage - Forward (Vf) Typ | - |
| Internal Connection | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SLY2016 SLY2016 475 2576 ND 4752576ND 475-2576 |

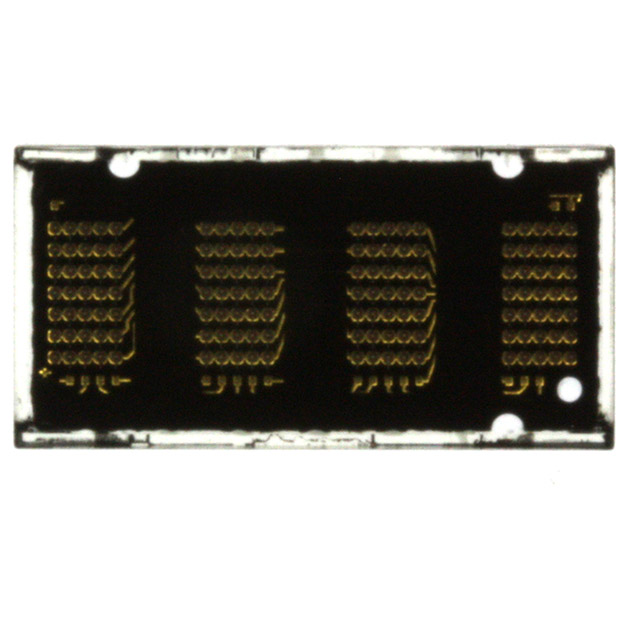

The SLR/SLO/SLG/SLY2016 is a four digit 5 x 7 dot matrix display module with a built-in CMOS integrated circuit. This display is X/Y stackable.
The integrated circuit contains memory, a 128 ASCII ROM decoder, multiplexing circuitry and drivers. Data entry is asynchronous. A display system can be built using any number of SLR/SLO/SLG/SLY2016 since each digit can be addressed independently and will continue to display the character last stored until replaced by another.
System interconnection is very straightforward. Two address bits (A0, A1) are normally connected to the like-named inputs of all displays in the system.
Data lines are connected to all SLR/SLO/SLG/SLY2016s directly and in parallel as is the write line (WR). The display will then behave as a write-only memory.
The SLR/SLO/SLG/SLY2016 has several features superior to competitive devices. 100% burn-in processing insures that the SLR/SLO/SLG/ SLY2016 will function in more stressful assembly and use environments. True "blanking" allows the designer to dim the display for more flexibility of display presentation. Finally the CLR clear function will clear the ASCII character RAM.
