SCWU-2, SCX01DN, SCX1108-V2 Datasheet download
Category: Sensors, Transducers
MFG: Honeywell Sensing and Control/Sensym
Package Cooled:
D/C: 96
Description: SENSOR TEMP COMP 1PSID
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SCW05B-05
File Size: 222210 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SCX01DN
File Size: 224430 KB
Manufacturer: ETC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SCX01DN
File Size: 224430 KB
Manufacturer: ETC
Download : Click here to Download

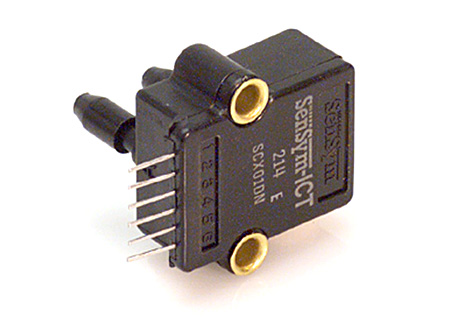

| Technical/Catalog Information | SCX01DN |
| Vendor | Honeywell Sensing and Control/Sensym |
| Category | Sensors, Transducers |
| Operating Pressure | 0 ~ 1 PSID |
| Voltage - Rated | 20VDC |
| Output | 0 ~ 18mV |
| Package / Case | SIP |
| Pressure Type | Differential/Gauge |
| Features | Precision Compensated |
| Interface | - |
| Pressure Port | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SCX01DN SCX01DN 287 1017 ND 2871017ND 287-1017 |
The SCX series sensors will provide a very cost effective solution for pressure applications that require high accuracy over a wide temperature range. These internally calibrated and temperature compensated sensors were specifically designed to provide an accurate and stable output over a 0°C to 70°C temperature range. This series is intended for use with non-corrosive, nonionic working fluids such as air, dry gases, and the like.
Devices are available to measure absolute, differential, and gage pressures from 1psi (SCX01) up to 150psi (SCX150). The Absolute (A) devices have an internal vacuum reference and an output voltage proportional to absolute pressure. The Differential (D) devices allow application of pressure to either side of the pressure sensing diaphragm and can be used for gage or differential pressure measurements.
The SCX devices feature an integrated circuit sensor element and laser trimmed thick film ceramic housed in a compact nylon case. This package provides excellent corrosion resistance and provides isolation to external package stresses. The package has convenient mounting holes and pressure ports for ease of use with standard plastic tubing for pressure connection.
All SCX devices are calibrated for span to within ±1% and provide a very low zero pressure output of ±300 microvolts maximum. Thus, for many applications,no trimming networks are required in the signal conditioning circuitry. If the application requires extended temperature range operation, beyond 0 to 70°C, two pins which provide an output voltage proportional to temperature are available for use with external circuitry.
The output of the bridge is ratiometric to the supply voltage and operation from any D.C. supply voltage up to +30 V is acceptable.
Because these devices have very low noise and excellent temperature compensation, they are ideal for medical and other high performance applications. The 100 microsecond response time also makes this series an excellent choice for computer peripherals and pneumatic control applications.
Supply VoltageVS +30 VDC
Common-mode Pressure 50 psig
Lead Temperature
(Soldering, 4 seconds) 250°C
Temperature Range
Compensated 0 to 70°C
Operating -40°C to +85°C
Storage -55°C to +125°C
Humidity Limits 0 to 100 %RH
