MFG:Sirenza Microdevices Inc Category:RF and RFID Package Cooled:2006+ D/C:520
SBF-4089Z, SBF-5089, SBF-5089(Z) Datasheet download
Category: RF and RFID
MFG: Sirenza Microdevices Inc
Package Cooled: 2006+
D/C: 520
Description: IC AMP HBT 500MHZ SOT-89
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SBF-4089Z
File Size: 234965 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBF-5089
File Size: 239818 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBF0402GPL
File Size: 73776 KB
Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
Download : Click here to Download
| Technical/Catalog Information | SBF-4089Z |
| Vendor | Sirenza Microdevices Inc |
| Category | RF and RFID |

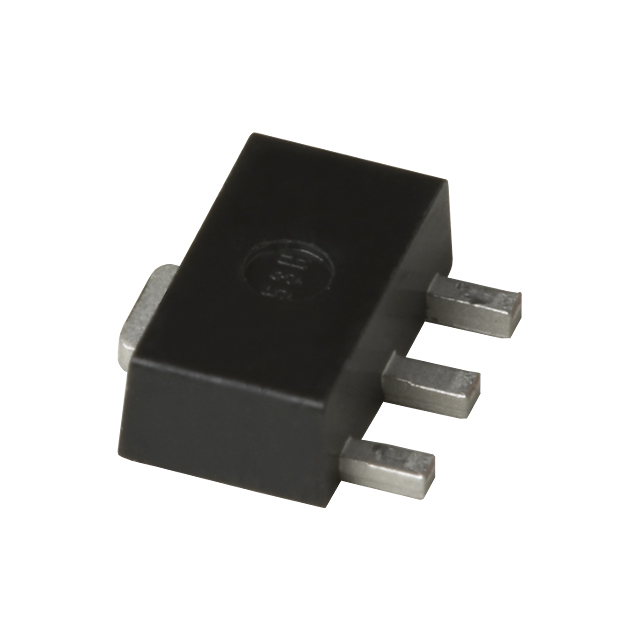

| Package / Case | SOT-89 |
| Voltage - Supply | 4.5V ~ 5.3V |
| Current - Supply | 82mA ~ 98mA |
| Gain | 13.2dB ~ 16.2dB |
| Frequency | 0Hz ~ 500MHz |
| RF Type | Cellular, GSM, PCS, UMTS |
| Packaging | Tape & Reel (TR) |
| Noise Figure | 3.3dB ~ 4.3dB @ 500MHz |
| P1db | 18.4dBm ~ 19.9dBm |
| Test Frequency | 400MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SBF 4089Z SBF4089Z 599 1008 2 ND 59910082ND 599-1008-2 |
|
Ma. Dvice Current (ID) |
150 mA |
|
Max Device Voltage (VD) |
6 V |
|
Max. RF Input Power |
+19 dBm |
|
Max. Operating Dissipated Power |
0.8 W |
|
Max. Junction Temp. (TJ) |
+150 |
|
Operating Temp. Range (TL) |
-40 to +85 |
|
Max. Storage Temp. |
+150 |
| Technical/Catalog Information | SBF-5089 |
| Vendor | Sirenza Microdevices Inc |
| Category | RF and RFID |
| Package / Case | SOT-89 |
| Voltage - Supply | 4.5V ~ 5.3V |
| Current - Supply | 82mA ~ 98mA |
| Gain | 18dB ~ 21dB @ 500MHz |
| Frequency | 0Hz ~ 500MHz |
| RF Type | Cellular, PCS, GSM, UMTS |
| Packaging | Tape & Reel (TR) |
| Noise Figure | 2.8dB ~ 3.8dB |
| P1db | 19.2dBm ~ 20.7dBm |
| Test Frequency | 400MHz |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SBF 5089 SBF5089 |
|
Ma. Dvice Current (ID) |
150 mA |
|
Max Device Voltage (VD) |
6 V |
|
Max. RF Input Power |
+19 dBm |
|
Max. Operating Dissipated Power |
0.8 W |
|
Max. Junction Temp. (TJ) |
+150 |
|
Operating Temp. Range (TL) |
-40 to +85 |
|
Max. Storage Temp. |
+150 |
