RTR030P02TL, RTR0320, RTR040N03

Table of contents:
Info of RTR030P02TL
Info of RTR0320
Info of RTR040N03

RTR030P02TL, RTR0320, RTR040N03 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:9000 D/C:07+

RTR030P02TL, RTR0320, RTR040N03 Datasheet download

Five Points

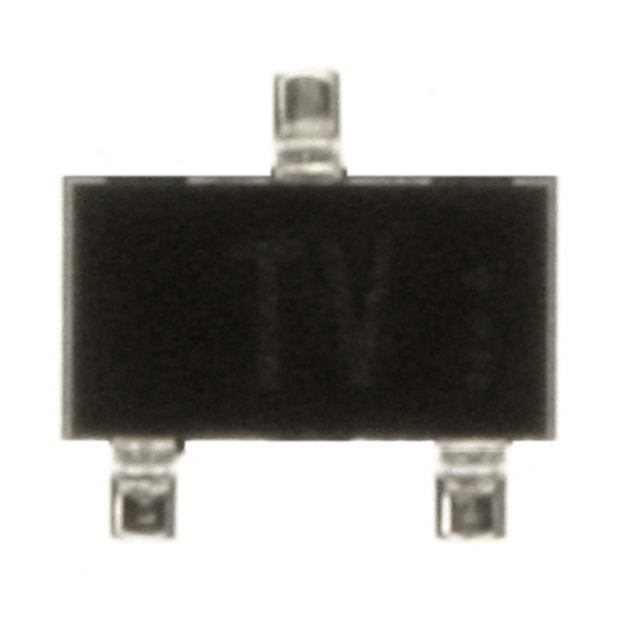

Part Number: RTR030P02TL

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: 9000

D/C: 07+

Description: MOSFET P-CH 20V 3A TSMT3

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RTR030P02TL Parameters

Technical/Catalog Information	RTR030P02TL
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	75 mOhm @ 3A, 4.5V
Input Capacitance (Ciss) @ Vds	840pF @ 10V
Power - Max	1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	9.3nC @ 4.5V
Package / Case	TSMT3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RTR030P02TL RTR030P02TL RTR030P02TLTR ND RTR030P02TLTRND RTR030P02TLTR

RTR040N03 Maximum Ratings

Parameter		Symbol	Limits	Unit
Drain-Source Voltage		V_DSS	30	V
Gate-Source Voltage		V_GSS	20	V
Drain Current	Continuous	I_D	±4.0	A
Drain Current	Pulsed	I_DP `1	±16	A
Source Current (Body Diode)	Continuous	I_s	0.8	A
Source Current (Body Diode)	Pulsed	I_sp `1	16	A
Total Power Dissipation		P_D `2	1.0	W
Channel Temperature		T_ch	150	°C
Range of Storage temperature		T_stg	-55 to +150	°C

`1 Pw10s, Duty cycle1%

`2 Mounted on a ceramic board.

RTR040N03 Features

1) Low On-resistance.
2) Built-in G-S Protection Diode.
3) Small and Surface Mount Package (TSMT3).

RTR040N03 Typical Application

Power switching, DC / DC converter .
