MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOP D/C:09+
RSX301L-30TE25, RSX301LA-30, RSX501L-20 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: SOP
D/C: 09+
Description: DIODE SCHOTTKY 30V 2A PMDS
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RSX051VA-30
File Size: 64413 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSX301LA-30
File Size: 33297 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSX501L-20
File Size: 52386 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
| Technical/Catalog Information | RSX301L-30TE25 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 420mV @ 3A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200A @ 30V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |

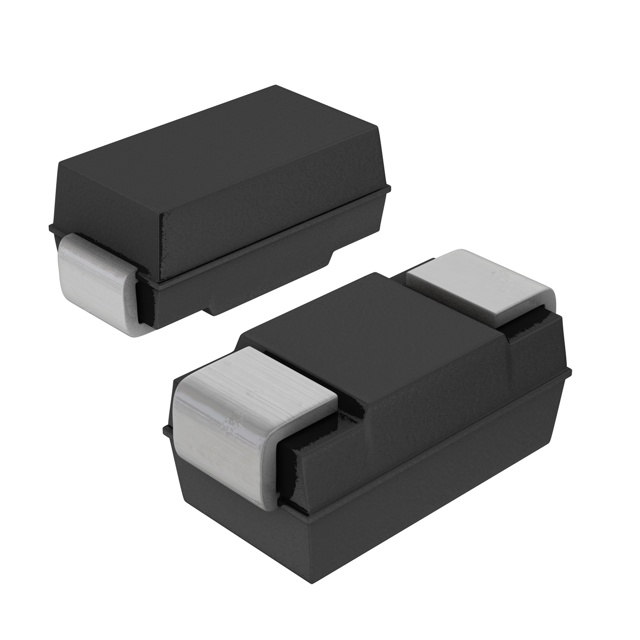

| Package / Case | SOD-106, PMDS |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RSX301L 30TE25 RSX301L30TE25 RSX301L 30TE25CT ND RSX301L30TE25CTND RSX301L-30TE25CT |
| Parameter | Symbol | Limits | Units |
| Reverse Voltage (repetitive peak) | VRM | 30 | v |
| Reverse Voltage (DC) | VR | 30 | v |
| Avetage rectified forward current | IO | 3.0 | A |
| Forward current surge peak (60Hz\1cyc.) | IFSM | 70 | W |
| Junction Temperature | Tj | 150 | °C |
| Storage Temperature | T STG | -40 to 150 | °C |
| Parameter | Symbol | Limits | Unit |
| � | VRM | 25 | V |
| � | VR | 20 | V |
| � | IO | 5 | A ` |
| (60Hz・1cyc.)� | IFSM | 70 | A |
| Tj | 125 | °C | |
| Tstg | −40~125 | °C |
