MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT163 D/C:04+
RSQ035P03, RSQ035P03TR, RSQ045N03 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOT163
D/C: 04+

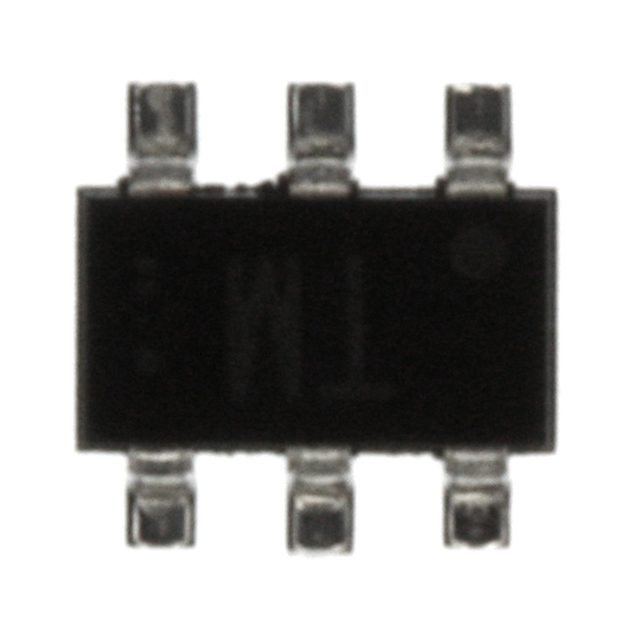

Description: MOSFET P-CH 30V 3.5A TSMT6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RSQ035P03
File Size: 97051 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSQ020N03
File Size: 62021 KB
Manufacturer: ROHM
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSQ045N03
File Size: 62021 KB
Manufacturer: ROHM
Download : Click here to Download
| Parameter |
Symbol |
Limits |
Unit | |
| Drain−source voltage |
VDSS |
−30 |
V | |
| Gate−source voltage |
VGSS |
±20 |
V | |
| Drain current | Continuous |
ID |
±3.5 |
A |
| Pulsed |
IDP |
±14 |
A(1) | |
| Source current (Body diode) |
Continuous |
IS |
−1 |
A |
| Pulsed |
ISP |
−4 |
A(1) | |
| Total power dissipation |
PD |
1.25 |
W(2) | |
| Channel temperature |
Tch |
150 |
°C | |
| Range of Strage temperature |
Tstg |
−55~+150 |
°C | |
| Technical/Catalog Information | RSQ035P03TR |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 3.5A |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 780pF @ 10V |
| Power - Max | 1.25W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 9.2nC @ 5V |
| Package / Case | TSMT6 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RSQ035P03TR RSQ035P03TR |
