MFG:Power-One Category:Power Supplies Package Cooled:24V/3.3V/66W D/C:2009
QES066YE-A, QES066ZE-A, QF15AA40 Datasheet download
Category: Power Supplies
MFG: Power-One
Package Cooled: 24V/3.3V/66W
D/C: 2009
Description: CONV DC-DC 48V IN 3.3V OUT 66W
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: QES066YE-A
File Size: 154947 KB
Manufacturer: POWER-ONE [Power-One]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QES066ZE-A
File Size: 154947 KB
Manufacturer: POWER-ONE [Power-One]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QF15AA40
File Size: 414588 KB
Manufacturer: ETC [ETC]
Download : Click here to Download

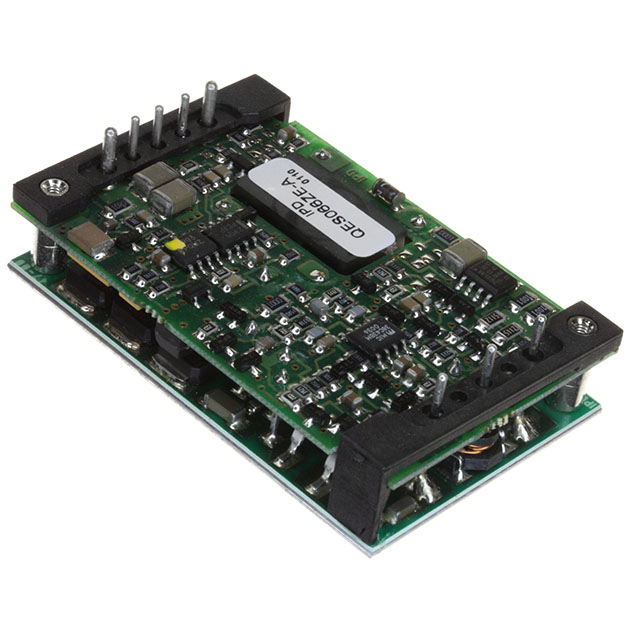

| Technical/Catalog Information | QES066ZE-A |
| Vendor | Power-One |
| Category | Power Supplies |
| Voltage - Input | 48V |
| Output | 3.3V |
| Power (Watts) | 66W |
| Number of Outputs | 1 |
| 1st Output | 3.3 VDC @ 20A |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Isolated |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Package / Case | 8-DIP MODULE |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | QES066ZE A QES066ZEA 179 2165 ND 1792165ND 179-2165 |
QF15AA is six pack Darlington power transistor module which has six transistors connected in three phase bridge configuraction. Each transistor has a reverse paralleled fast recovery diode. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction.
| Symbol | Item | Conditions | Ratings | UnitV | |
| VCBO | Collector-Base Voltage | QF20AA40 | QF20AA60 | ||
| VCEX | Collector-Emitter Voltage |
VBE=-2V |
400 | 600 | V |
| VEBO | Emitter-Base Voltage | 400 | 600 | V | |
| IC | Collector Current | ()=pw1ms | 10 | A | |
| -IC | Reverse Collector Current | 15(30) | A | ||
| IB | Base Current | 15 | A | ||
| PT | Total power dissipation | TC=25 | 1 | W | |
| Tj | Junction Temperature | 100 | |||
| Tstg | Storage Temperature | -40~+150 -40~+125 |
|||
| VISO | Isolation Voltage | A.C.1minute | 2500 | V | |
| Mounting Torque (M5) | Recommended Value 1.5 ~2.5(15 ~25) | 2.7(28) | N.m (kg f. B) | ||
Mass |
Typical Value | 95 | g | ||
