PVT412LPBF, PVT412LS, PVT412LSPBF

Table of contents:
Info of PVT412LPBF
Info of PVT412LS
Info of PVT412LSPBF

PVT412LPBF, PVT412LS, PVT412LSPBF Selling Leads, Datasheet

MFG:International Rectifier Category:Relays Package Cooled:1,000 D/C:09+

PVT412LPBF, PVT412LS, PVT412LSPBF Datasheet download

Five Points

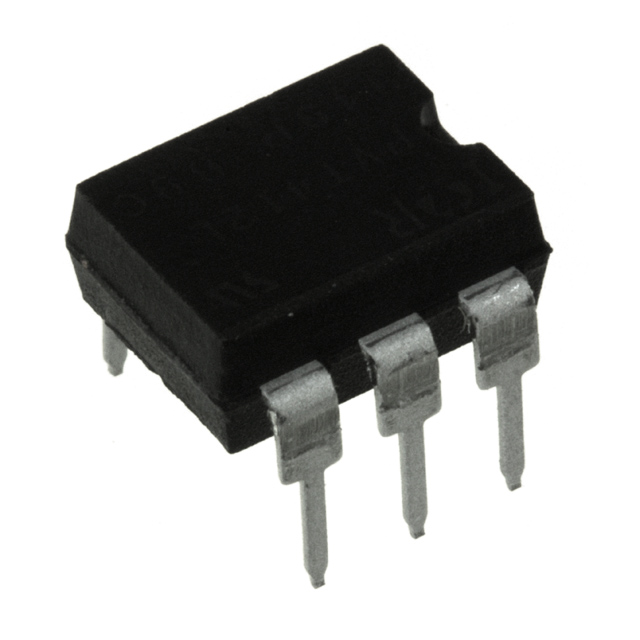

Part Number: PVT412LPBF

Category: Relays

MFG: International Rectifier

Package Cooled: 1,000

D/C: 09+

Description: IC RELAY PHOTOVO 400V 120MA 6SMD

Price Break

1
10
100
250
500
1000
2500
5000
10000

Unit Price

3.12000
2.13500
1.69830
1.59120
1.52256
1.46328
1.39360
1.34472
1.30000

Extended Price

3.12
21.35
169.83
397.80
761.28
1463.28
3484.00
6723.60
13000.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PVT412LPBF Parameters

Technical/Catalog Information	PVT412LPBF
Vendor	International Rectifier
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	120mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400 V
Output Type	AC, DC
On-State Resistance	35 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PVT412LPBF PVT412LPBF

PVT412LS Parameters

Technical/Catalog Information	PVT412LS
Vendor	International Rectifier
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	120mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400 V
Output Type	AC, DC
On-State Resistance	35 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PVT412LS PVT412LS

PVT412LS General Description

The PVT412 Series Photovoltaic Relay is a singlepole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes International Rectifier's proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. These SSRs are specifically designed for worldwide telecom applications.

PVT412L employs an active current-limiting circuitry enabling it to pass FCC Part 68 and other regulatory agency current surge requirements when overvoltage protection is provided. PVT412 does not em ploy the current-limiting circuitry and offers lower on-state resistance.

Series PVT412 Relays are packaged in a 6-lead molded DIP package with either thru-hole or surface mount ('gull-wing') terminals. It is available in standard plastic shipping tubes or on tape-and-reel. Please refer to part identification information opposite

PVT412LS Features

·HEXFET Power MOSFET output
·Bounce-free operation
·4,000 VRMS I/O isolation
·Load current limiting
·Linear AC/DC operation
·Solid-State Reliability
·UL recognized and BABT certified
·ESD Tolerance: 4000V Human Body Model 500V Machine Model

PVT412LS Typical Application

·On/Off Hook switch
·Dial-Out relay
·Ring relay
·General switching

PVT412LSPBF Parameters

Technical/Catalog Information	PVT412LSPBF
Vendor	International Rectifier
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	120mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400 V
Output Type	AC, DC
On-State Resistance	35 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PVT412LSPBF PVT412LSPBF
