PTH03010WAH, PTH03010WAS, PTH03020WAH

Table of contents:
Info of PTH03010WAH
Info of PTH03010WAS
Info of PTH03020WAH

PTH03010WAH, PTH03010WAS, PTH03020WAH Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies Package Cooled:N/S D/C:08.09+

PTH03010WAH, PTH03010WAS, PTH03020WAH Datasheet download

Five Points

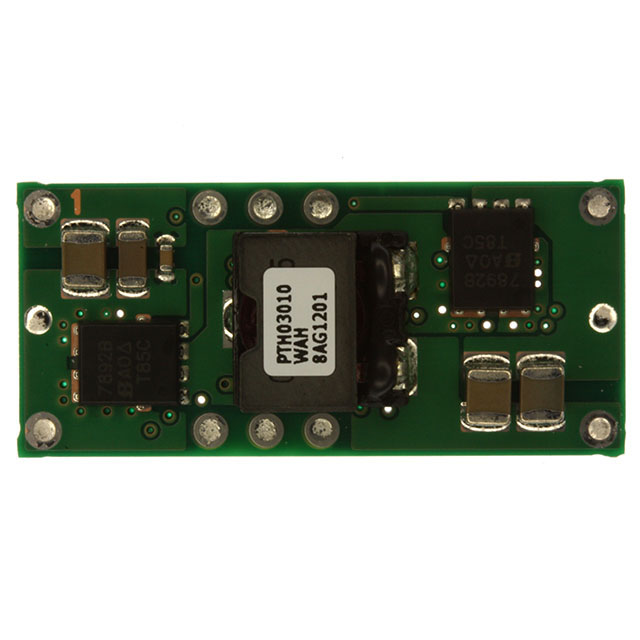

Part Number: PTH03010WAH

Category: Power Supplies

MFG: Texas Instruments

Package Cooled: N/S

D/C: 08.09+

Description: MODULE PIP .8-2.5V 22A T/H 10DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

16.53000
15.42800
14.32600
14.05052
13.77500
13.60970
13.22400

Extended Price

16.53
385.70
1432.60
3512.63
6887.50
13609.70
66120.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PTH03010WAH Parameters

Technical/Catalog Information	PTH03010WAH
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	2.95 ~ 3.65VDC
Output	0.8 ~ 2.5VDC
Power (Watts)	37W
Number of Outputs	1
1st Output	0.8 ~ 2.5 VDC @ 15A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	10-DIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH03010WAH PTH03010WAH 296 20369 ND 29620369ND 296-20369

PTH03010WAS Parameters

Technical/Catalog Information	PTH03010WAS
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	2.95 ~ 3.65VDC
Output	0.8 ~ 2.5VDC
Power (Watts)	37W
Number of Outputs	1
1st Output	0.8 ~ 2.5 VDC @ 15A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	10-DIP Module
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PTH03010WAS PTH03010WAS 296 20370 ND 29620370ND 296-20370

PTH03020WAH Parameters

Technical/Catalog Information	PTH03020WAH
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	2.95 ~ 3.65VDC
Output	0.8 ~ 2.5VDC
Power (Watts)	55W
Number of Outputs	1
1st Output	0.8 ~ 2.5 VDC @ 22A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	10-DIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH03020WAH PTH03020WAH 296 20375 ND 29620375ND 296-20375
