PT6651D, PT6651E, PT6651P

Table of contents:
Info of PT6651D
Info of PT6651E
Info of PT6651P

PT6651D, PT6651E, PT6651P Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies

PT6651D, PT6651E, PT6651P Datasheet download

Five Points

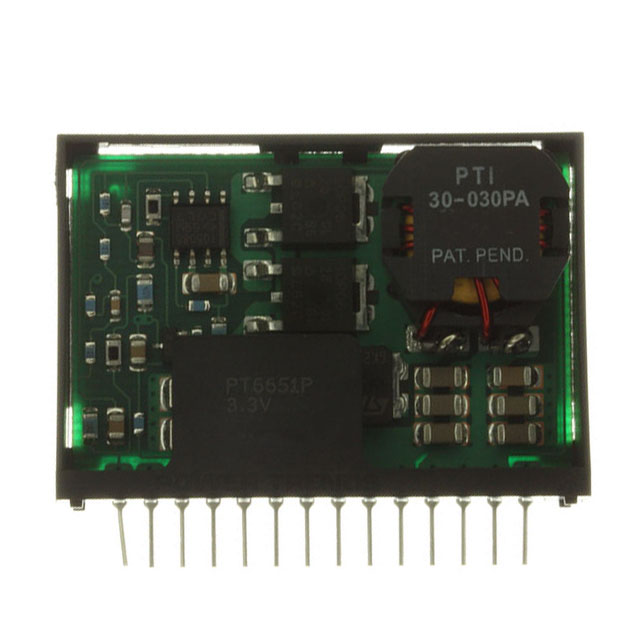

Part Number: PT6651P

Category: Power Supplies

MFG: Texas Instruments

Package Cooled:

D/C:

Description: REGULATOR 12/24V-3.3V 5A SIP VER

Price Break

Unit Price

34.74833

Extended Price

416.98

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PT6651D Parameters

Technical/Catalog Information	PT6651D
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	9 ~ 28VDC
Output	3.3V
Power (Watts)	16.5W
Number of Outputs	1
1st Output	3.3 VDC @ 5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole, Right Angle
Packaging	Tray
Package / Case	14-SIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT6651D PT6651D

PT6651D General Description

The PT6650 power modules are a series of high efficiency, non-isolated step-down integrated switching regulators (ISRs). These regulators are designed to operate over a 9 V to 28 V input voltage range to produce a tightly regulated output voltage at load currents of up to 5 A. The wide input voltage range allows them to operate off either a 12 V or 24 V DC input bus system, making them ideal for general purpose and industrial applications. The series includes standard output voltage options ranging from 15 V down to 2.5 V,and down to 1.8 V with adjustment. Only two external capacitors are required for proper operation.

The PT6650 series is housed in a lowcost 14-pin SIP (Single In-line Package) and is available in both vertical and horizontal configurations, including surface-mount.

PT6651D Features

• Single Device: 5-A Output
• Input Voltage Range: 9 V to 28 V
• 12 V / 24 V Input Compatible
• Adjustable Output Voltage
• 80 % Efficiency
• Output Remote Sense
• On/Off Standby Function

PT6651E Parameters

Technical/Catalog Information	PT6651E
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	9 ~ 28VDC
Output	3.3V
Power (Watts)	16.5W
Number of Outputs	1
1st Output	3.3 VDC @ 5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	14-SIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT6651E PT6651E

PT6651E General Description

PT6651E Features

PT6651P Parameters

Technical/Catalog Information	PT6651P
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	9 ~ 28VDC
Output	3.3V
Power (Watts)	16.5W
Number of Outputs	1
1st Output	3.3 VDC @ 5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	14-SIP MODULE
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PT6651P PT6651P
