PT601T, PT6101, PT6101A

Table of contents:
Info of PT601T
Info of PT6101
Info of PT6101A

PT601T, PT6101, PT6101A Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies Package Cooled:06+ D/C:6888

PT601T, PT6101, PT6101A Datasheet download

Five Points

Part Number: PT6101A

Category: Power Supplies

MFG: Texas Instruments

Package Cooled: 06+

D/C: 6888

Description: REG ISR 1A 5V ADJ HORZ 12-SIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PT601T Maximum Ratings

Parameter	Symbol	Rating	Unit
Collector-emitter voltage	V_CEO	35	V
Emitter-collector voltage	V_ECO	6	V
Collector current	I_C	20	mA
Collector power dissipation	P_C	50	mW
Operating temperature	Topr	-25 to +85	°C
Storage temperature	Tstg	-25 to +100	°C
*1 Soldering temperature	Tsol	260	°C

PT601T Features

1. Subminiature (Dimensions: 1.6 x 1.6 x 0.8mm)
2. Thin type (Thickness: 0.8mm)
3. High sensitivity (Darlington output)
4. Surface mount type (leadless type)
5. Taped model (4 000pcs./reel)

PT601T Typical Application

1. For ON/OFF control of LEDs for LCD backlight
2. Pagers
3. Cellular phones
4. Other portable equipment

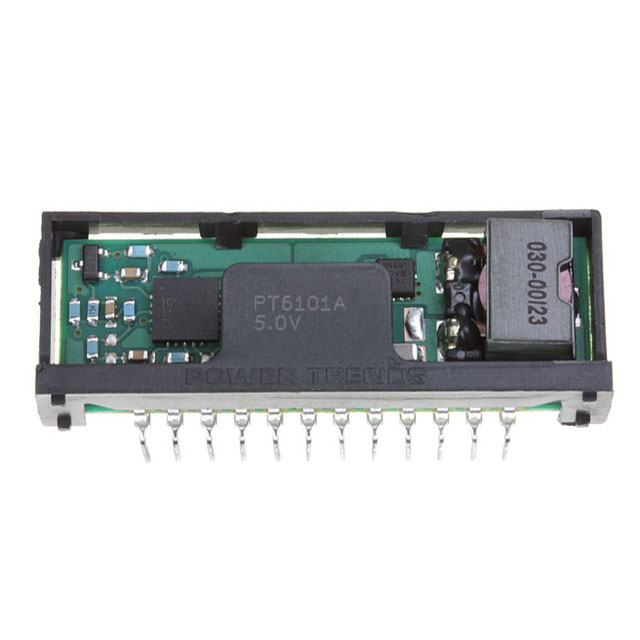

PT6101A Parameters

Technical/Catalog Information	PT6101A
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	9 ~ 38VDC
Output	5V
Power (Watts)	5W
Number of Outputs	1
1st Output	5 VDC @ 1A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole, Right Angle
Packaging	Tray
Package / Case	12-SIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT6101A PT6101A
