MFG:Texas Instruments Category:Power Supplies Package Cooled:SIP D/C:04/
PT5022N, PT5023N, PT5024 Datasheet download
Category: Power Supplies
MFG: Texas Instruments
Package Cooled: SIP
D/C: 04/
Description: REG SW -9V .6A VERT
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PT5022N
File Size: 144495 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PT5023N
File Size: 144495 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PT5024
File Size: 215135 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download

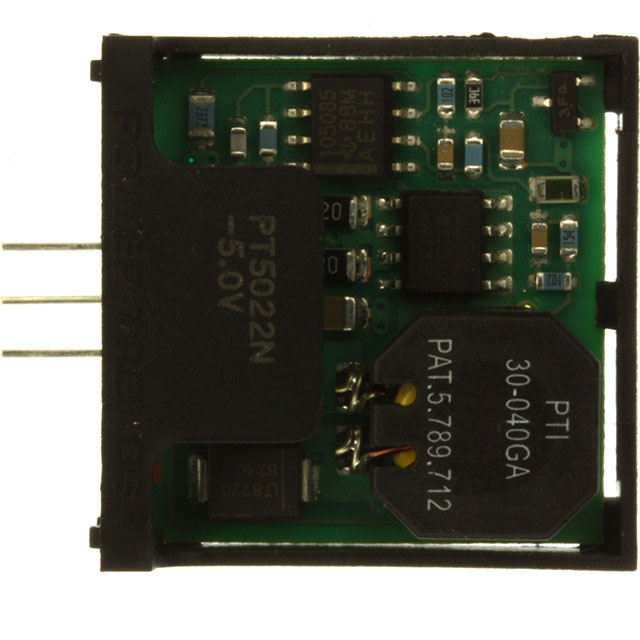

| Technical/Catalog Information | PT5022N |
| Vendor | Texas Instruments |
| Category | Power Supplies |
| Voltage - Input | 4.75 ~ 7VDC |
| Output | -5.0VDC |
| Power (Watts) | 5W |
| Number of Outputs | 1 |
| 1st Output | -5 VDC @ 1A |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Non-Isolated |
| Mounting Type | Through Hole |
| Packaging | Tray |
| Package / Case | 3-SIP MODULE |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PT5022N PT5022N |
| Technical/Catalog Information | PT5023N |
| Vendor | Texas Instruments |
| Category | Power Supplies |
| Voltage - Input | 4.75 ~ 7VDC |
| Output | -9.0VDC |
| Power (Watts) | 5.4W |
| Number of Outputs | 1 |
| 1st Output | -9 VDC @ 600mA |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Non-Isolated |
| Mounting Type | Through Hole |
| Packaging | Tray |
| Package / Case | 3-SIP MODULE |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PT5023N PT5023N 296 20084 ND 29620084ND 296-20084 |
