PQ3DZ51, PQ3DZ53, PQ3DZ53U

Table of contents:
Info of PQ3DZ51
Info of PQ3DZ53
Info of PQ3DZ53U

PQ3DZ51, PQ3DZ53, PQ3DZ53U Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Integrated Circuits (ICs) Package Cooled:TO-252 D/C:08+

PQ3DZ51, PQ3DZ53, PQ3DZ53U Datasheet download

Five Points

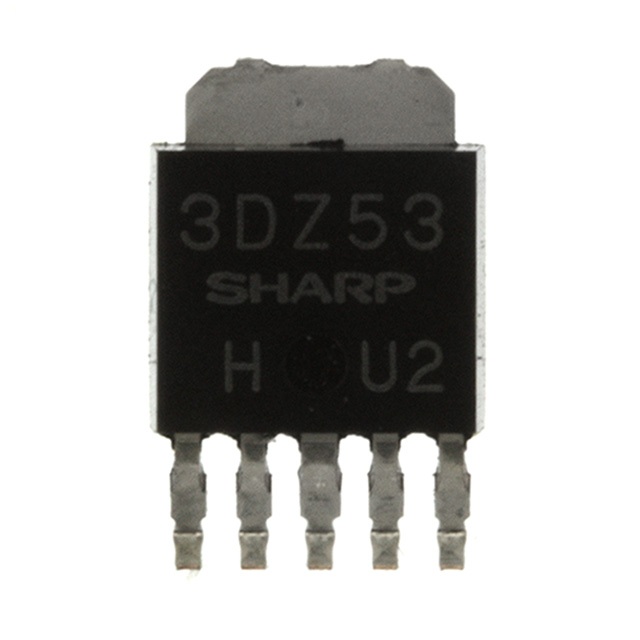

Part Number: PQ3DZ53

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: TO-252

D/C: 08+

Description: IC REG LDO 3.3V .5A ON/OFF SC-63

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PQ3DZ53 Parameters

Technical/Catalog Information	PQ3DZ53
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SC-63-5
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	500mA
Voltage - Output	3.3V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	4 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	500mA
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ3DZ53 PQ3DZ53 425 1729 5 ND 42517295ND 425-1729-5

PQ3DZ53 Maximum Ratings

Parameter	Symbol	Rating		Unit
Parameter	Symbol	PQ05DZ51 series PQ3DZ53	PQ05DZ11 series PQ3DZ13	Unit
^*1Input voltage	V_IN	24		V
^*1ON/OFF control terminal voltage	V_C	24		V
Output current	I_O	0.5	1.0	A
^*2Power dissipation (No heat sink)	P_D	8		W
^*3Junction temperature	T_j	150
Operating temperature	T_opr	-20 to +80
Storage temperature	T_stg	-40 to +150
^*3Soldering temperature	T_sol	260 (for 10s)

*1 All are open except GND and applicable terminals.
*2 PD : With infinite heat sink
*3 Overheat protection may operate at 125<=Tj<=150°C

PQ3DZ53 Features

· Low power-loss (Dropout voltage : MAX. 0.5V)
· Surface mount package (equivalent to SC-63)
· Available 3.3V, 5V, 9V, 12V output type
· Output current (0.5A : PQ05DZ51 series/PQ3DZ53) (1.0A : PQ05DZ11 series/PQ3DZ13)
· Output voltage precision : ±3.0%
· Built-in ON/OFF control function
· Low dissipation current at OFF-state (Iqs : MAX. 5µA)
· Built-in overcurrent protection, overheat protection function, ASO protection function
· Available tape-packaged products (ø330mm reel : 3 000 pcs., PQ05DZ5U/1U series, PQ3DZ53U/13U)

PQ3DZ53 Typical Application

· Personal computers
· CD-ROM drives
· Power supplies for various OA equipment

PQ3DZ53U Parameters

Technical/Catalog Information	PQ3DZ53U
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SC-63-5
Packaging	Tape & Reel (TR)
Regulator Topology	Positive Fixed
Current - Output	500mA
Voltage - Output	3.3V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	4 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	500mA
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ3DZ53U PQ3DZ53U 425 1729 2 ND 42517292ND 425-1729-2
