PQ12RA11, PQ12RD08, PQ12RD11

PQ12RA11, PQ12RD08, PQ12RD11 Selling Leads, Datasheet

MFG:Sharp Microelectronics  Category:Integrated Circuits (ICs)  Package Cooled:09+  D/C:1000

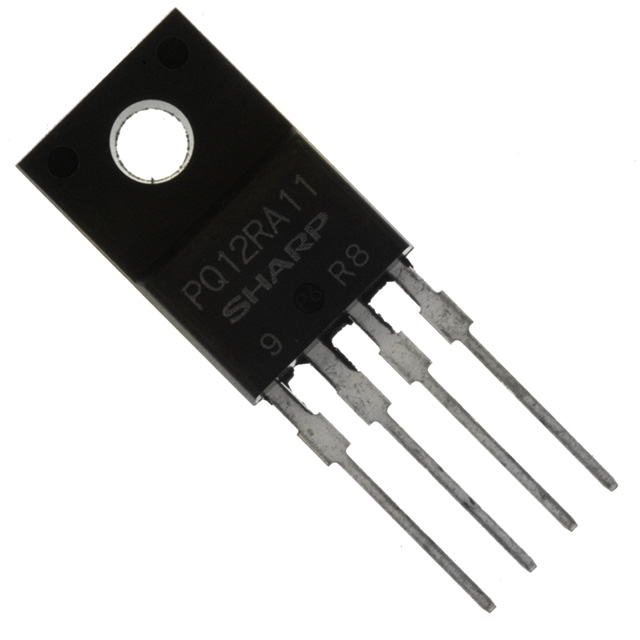

PQ12RA11 Picture

PQ12RA11, PQ12RD08, PQ12RD11 Datasheet download

Five Points

Part Number: PQ12RA11

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: 09+

D/C: 1000

Description: IC REG LDO 12V 1A ON/OFF TO-220
