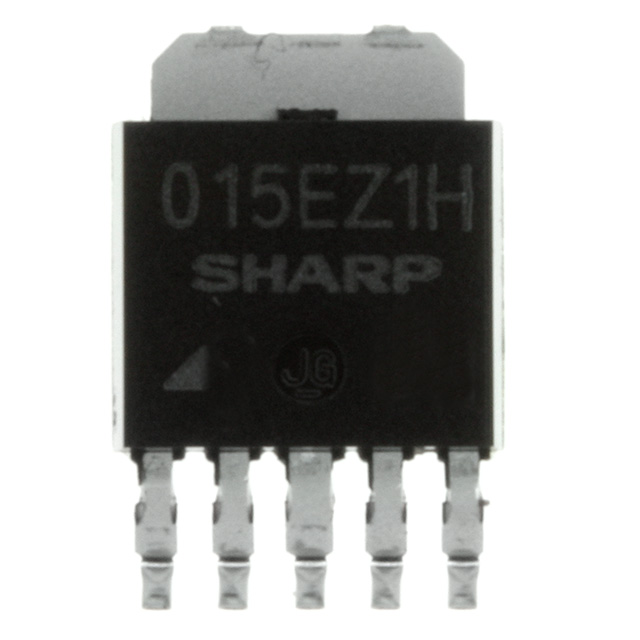

Part Number: PQ015EZ1HZPH

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics (VA)

Package Cooled: www.dayue-hk.com

D/C: 04+

Description: IC REG 1.5A 1.5V FIXED SC-63

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PQ015EZ1HZPH Parameters

Technical/Catalog Information	PQ015EZ1HZPH
Vendor	Sharp Microelectronics (VA)
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SC-63
Packaging	Digi-Reel?
Regulator Topology	Positive Fixed
Current - Output	1.5A
Voltage - Output	1.5V
Operating Temperature	-40°C ~ 85°C
Voltage - Input	2.35 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	1.5A
Current Short Circuit (Isc)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PQ015EZ1HZPH PQ015EZ1HZPH 425 2627 6 ND 42526276ND 425-2627-6

PQ015EZ1HZPH Maximum Ratings

Parameter	Symbol	Rating	Unit
^*1Input voltage	V_IN	10	V
^*1ON/OFF control terminal voltage	V_C	10	V
Output current	I_O	1.5	A
^*2Power dissipation (No heat sink)	P_D	8	W
^*3Junction temperature	T_j	150
Operating temperature	T_opr	- 40 to +85
Storage temperature	T_stg	-40 to +150
^*3Soldering temperature	T_sol	260 ( 10s)

*1 All are open except GND and applicable terminals.
*2 PD: With infinite heat sink
*3 Overheat protection may operate at Tj:125°C to 150°C

PQ015EZ1HZPH Features

1.Low voltage operation (Minimum operating voltage: 2.35V) 2.5V input available 1.5 to 1.8V
2.Low dissipation current Dissipation current at no load: MAX. 2mA Output OFF-state dissipation current: MAX. 5A
3.Low power-loss
4.Built-in overcurrent and overheat protection functions
5.RoHS directive compliant

PQ015EZ1HZPH Typical Application

1.Power supplies for personal computers and peripheral equipment
2.Power supplies for various electronic equipment such as DVD player or STB
