MFG:Murata Electronics North America Category:Audio Products Package Cooled:MURATA D/C:08+
PKM17EWH4000, PKM17EWH4004, PKM22EPH2001 Datasheet download
Category: Audio Products
MFG: Murata Electronics North America
Package Cooled: MURATA
D/C: 08+
Description: BUZZER PIEZO 25VP-P 2KHZ PC MT
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PKM13EPY
File Size: 272740 KB
Manufacturer: MURATA [Murata Manufacturing Co., Ltd.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PKM13EPY
File Size: 272740 KB
Manufacturer: MURATA [Murata Manufacturing Co., Ltd.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PKM13EPY
File Size: 272740 KB
Manufacturer: MURATA [Murata Manufacturing Co., Ltd.]
Download : Click here to Download

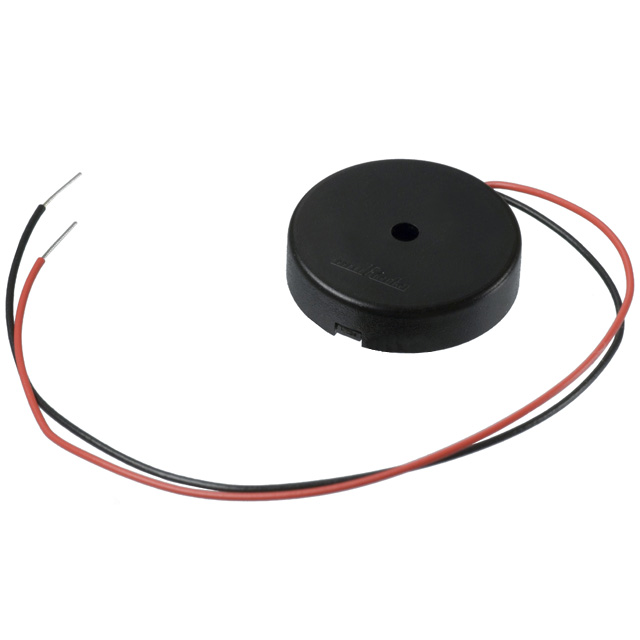

| Technical/Catalog Information | PKM17EWH4000 |
| Vendor | Murata Electronics North America |
| Category | Audio Products |
| Type | Piezo Transducer, External Drive |
| Sound Pressure Level | 75dB |
| Mounting Type | Requires Holder |
| Capacitance @ Frequency | 9500pF @ 1kHz |
| Frequency | 4kHz |
| Packaging | Bulk |
| Operating Mode | - |
| Voltage Range | 25Vp-p (max) |
| Voltage - Rated | 3Vp-p |
| Current Rating | - |
| Size / Dimension | Circular - 16.8mm Dia x 4mm H |
| Termination | Wire Leads |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PKM17EWH4000 PKM17EWH4000 490 4696 ND 4904696ND 490-4696 |
| Technical/Catalog Information | PKM22EPH2001 |
| Vendor | Murata Electronics North America |
| Category | Audio Products |
| Type | Piezo Transducer, External Drive |
| Sound Pressure Level | 75dB |
| Mounting Type | Through Hole |
| Capacitance @ Frequency | 17000pF @ 120Hz |
| Frequency | 2kHz |
| Packaging | Bulk |
| Operating Mode | - |
| Voltage Range | 25Vp-p (max) |
| Voltage - Rated | 3Vp-p |
| Current Rating | - |
| Size / Dimension | Circular - 22mm Dia x 11mm H |
| Termination | Solder Pins/Posts |
| Capacitance | * |
| Adjustment Type | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PKM22EPH2001 PKM22EPH2001 490 4690 ND 4904690ND 490-4690 |
