MFG:Sharp Microelectronics (VA) Category:Isolators Package Cooled:2008+ D/C:02+
PC400TJ0000F, PC400Z, PC401 Datasheet download
Category: Isolators
MFG: Sharp Microelectronics (VA)
Package Cooled: 2008+
D/C: 02+
Description: PHOTOCOUPLER OPIC 5-SOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PC400
File Size: 52108 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PC400Z
File Size: 70127 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PC401
File Size: 56033 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
| Technical/Catalog Information | PC400TJ0000F |
| Vendor | Sharp Microelectronics |
| Category | Isolators |
| Mounting Type | Surface Mount |
| Package / Case | 5-SOP |
| Voltage - Isolation | 3750Vrms |
| Configuration | 1, One Direction |
| Input Type | DC |
| Output Type | Open Collector |
| Data Rate | - |
| Current - Output / Channel | 50mA |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PC400TJ0000F PC400TJ0000F |
| Technical/Catalog Information | PC401 |
| Vendor | Sharp Microelectronics (VA) |
| Category | Isolators |
| Mounting Type | Surface Mount |
| Package / Case | 5-SOP |
| Voltage - Isolation | 3750Vrms |
| Configuration | 1, One Direction |
| Input Type | DC |
| Output Type | Open Collector |
| Data Rate | - |
| Current - Output / Channel | 50mA |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PC401 PC401 425 1521 1 ND 42515211ND 425-1521-1 |

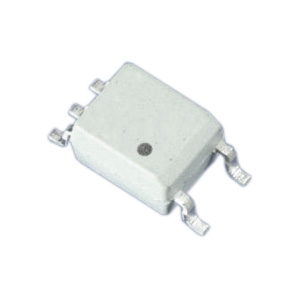

The PC401 is a kind of compact, surface mount OPIC photocoupler.
Features of the PC401 are:(1) mini-flat package;(2) " high " output during light emission;(3) isolation voltage between input and output;(4) TTL and LSTTL compatible output;(5) recognized by UL(No.64380).
The absolute maximum ratings of the PC401 can be summarized as:(1): input forward current(IF) is 50 mA;(2): input reverse voltage(VR) is 6 V;(3): input power dissipation(P) is 70 mW;(4): input power dissipation(P) is 70 mW; (5): output supply voltage(VCC) is 16 V;(6): high level output voltage(VOH) is 16 V;(7): low level output current(IOL) is 50 mA;(8): output power dissipation(PO) is 130 mW;(9): total power dissipation(Ptot)is 150 mW;(10): isolation voltage(Viso) is 3750 Vrms;(11): operating temperature(Topr) is -25°C to + 85°C; (12): storage temperature(Tstg) is - 40°C to + 125°C.
