PA60DK, PA61A, PA61A/883

PA60DK, PA61A, PA61A/883 Selling Leads, Datasheet

MFG:Cirrus Logic Inc  Category:Integrated Circuits (ICs)  Package Cooled:ZIP  D/C:0405+

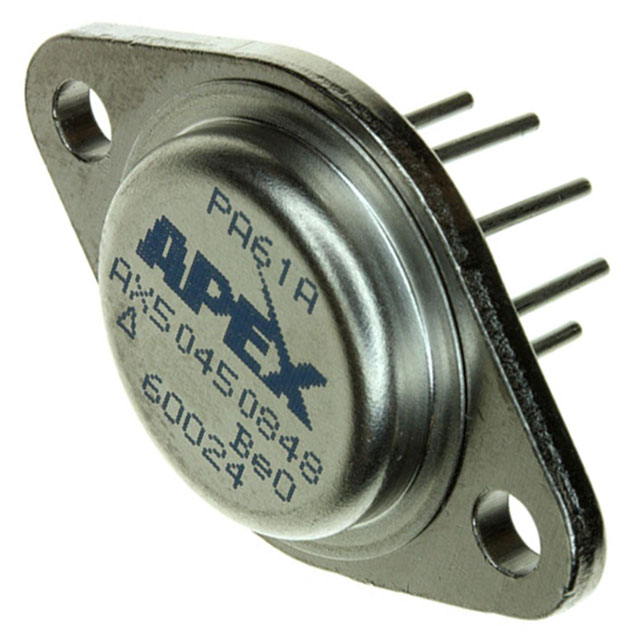

PA61A Picture

PA60DK, PA61A, PA61A/883 Datasheet download

Five Points

Part Number: PA61A

Category: Integrated Circuits (ICs)

MFG: Cirrus Logic Inc

Package Cooled: ZIP

D/C: 0405+

Description: OP AMP 90V 10A TO-3-8 CE SG






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

PA60DK Suppliers

More PA60DK Suppliers

Select All

  • PA60EU

  • Vendor: APEC Pack: ZIP D/C: 04+& Qty: 781 Note: IC  Adddate: 2024-11-24
  • Inquire Now
  • Guangsheng Electronics Co.,Ltd   China
    Contact: Ms.MonicaXu   MSN:xujing_cheesecake@hotmail.com
    Tel: 086-0755-83003554
    Fax: 086-0755-83778418
    (201)
  • PA61

  • Vendor: APEC D/C: 11+& Qty: stock  Adddate: 2024-11-24
  • Inquire Now
  • yjgreat   China
    Contact: Mr.vinay
    Tel: 86-10-88508610
    Fax: --
    (3)
  • PA61

  • Vendor: APEC D/C: 98+&   Adddate: 2024-11-24
  • Inquire Now
  • Ocean Expanding Inc.   China
    Contact: Ms.Candy   MSN:candy@oceanexpanding.com
    Tel: 86-10-88595369
    Fax: 86-10-88460239
    (205)

About PA60

PDF/DataSheet Download

Datasheet: PA60

File Size: 376832 KB

Manufacturer: APEX

Download : Click here to Download

Related PDF Download

Related Part Number

PA61A Suppliers

More PA61A Suppliers

Select All

  • PA60EU

  • Vendor: APEC Pack: ZIP D/C: 04+& Qty: 781 Note: IC  Adddate: 2024-11-24
  • Inquire Now
  • Guangsheng Electronics Co.,Ltd   China
    Contact: Ms.MonicaXu   MSN:xujing_cheesecake@hotmail.com
    Tel: 086-0755-83003554
    Fax: 086-0755-83778418
    (201)
  • PA61

  • Vendor: APEC D/C: 11+& Qty: stock  Adddate: 2024-11-24
  • Inquire Now
  • yjgreat   China
    Contact: Mr.vinay
    Tel: 86-10-88508610
    Fax: --
    (3)
  • PA61

  • Vendor: APEC D/C: 98+&   Adddate: 2024-11-24
  • Inquire Now
  • Ocean Expanding Inc.   China
    Contact: Ms.Candy   MSN:candy@oceanexpanding.com
    Tel: 86-10-88595369
    Fax: 86-10-88460239
    (205)

About PA61A

PDF/DataSheet Download

Datasheet: PA61A

File Size: 66145 KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

PA61A/883 Suppliers

More PA61A/883 Suppliers

Select All

  • PA60EU

  • Vendor: APEC Pack: ZIP D/C: 04+& Qty: 781 Note: IC  Adddate: 2024-11-24
  • Inquire Now
  • Guangsheng Electronics Co.,Ltd   China
    Contact: Ms.MonicaXu   MSN:xujing_cheesecake@hotmail.com
    Tel: 086-0755-83003554
    Fax: 086-0755-83778418
    (201)
  • PA61

  • Vendor: APEC D/C: 11+& Qty: stock  Adddate: 2024-11-24
  • Inquire Now
  • yjgreat   China
    Contact: Mr.vinay
    Tel: 86-10-88508610
    Fax: --
    (3)
  • PA61

  • Vendor: APEC D/C: 98+&   Adddate: 2024-11-24
  • Inquire Now
  • Ocean Expanding Inc.   China
    Contact: Ms.Candy   MSN:candy@oceanexpanding.com
    Tel: 86-10-88595369
    Fax: 86-10-88460239
    (205)

About PA60

PDF/DataSheet Download

Datasheet: PA60

File Size: 376832 KB

Manufacturer: APEX

Download : Click here to Download

Related PDF Download

Related Part Number

PA60DK Parameters

Technical/Catalog InformationPA60DK
VendorCirrus Logic Inc
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypePower
Number of Circuits2 - Dual
Package / Case20-PSOP
Slew Rate1.4 V/s
Gain Bandwidth Product1.4MHz
Current - Supply8mA
Current - Output/Channel1A
Voltage - Supply, Single/Dual (±)5 V ~ 40 V, ±2.5 V ~ 20 V
Output Type-
-3db Bandwidth-
Current - Input Bias0.1A
Operating Temperature-40°C ~ 125°C
Voltage - Input Offset1000V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names PA60DK
PA60DK

PA61A Parameters

Technical/Catalog InformationPA61A
VendorCirrus Logic Inc
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypePower
Number of Circuits1 - Single
Package / CaseTO-3-8
Slew Rate2.8 V/s
Gain Bandwidth Product1MHz
Current - Supply3mA
Current - Output/Channel10A
Voltage - Supply, Single/Dual (±)20 V ~ 90 V, ±10 V ~ 45 V
Output Type-
-3db Bandwidth-
Current - Input Bias10nA
Operating Temperature-25°C ~ 85°C
Voltage - Input Offset1000V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PA61A
PA61A
598 1318 ND
5981318ND
598-1318

PA61A General Description

The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their complementary emitter follower output stage is the simple class C type and optimized for low frequency applications where crossover distortion is not critical. These amplifiers are not recommended for audio, transducer or deflection coil drive circuits above 1kHz or when distortion is critical. The safe operating area (SOA) is fully specified and can be observed for all operating conditions by selection of user programmable current limiting resistors. Both amplifiers are internally compensated for all gain settings. For continuous operation under load, mounting on a heatsink of proper rating is recommended.

This hybrid circuit utilizes thick film conductors, ceramic capacitors, and semiconductor chips to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed. The use of compressible thermal washers and/or improper mounting torque voids the product warranty. Please see "General Operating Considerations".

PA61A Maximum Ratings

SUPPLY VOLTAGE, +VS to VS
90V
OUTPUT CURRENT, within SOA
10A
POWER DISSIPATION, internal
97W
INPUT VOLTAGE, differential
±VS3V
INPUT VOLTAGE, common mode
±VS
TEMPERATURE, pin solder-10s
300
TEMPERATURE, junction1
200
TEMPERATURE RANGE, storage
65 to +150
OPERATING TEMPERATURE RANGE, case
55 to +125

PA61A Features

• WIDE SUPPLY RANGE - ±10 to ±45V
• HIGH OUTPUT CURRENT - ±10A Peak
• LOW COST - Class "C" output stage
• LOW QUIESCENT CURRENT - 3mA

PA61A Typical Application

• PROGRAMMABLE POWER SUPPLY
• MOTOR/SYNCRO DRIVER
• VALVE AND ACTUATOR CONTROL
• DC OR AC POWER REGULATOR
• FIXED FREQUENCY POWER OSCILLATOR
