OPB606A, OPB607A, OPB608A

Table of contents:
Info of OPB606A
Info of OPB607A
Info of OPB608A

OPB606A, OPB607A, OPB608A Selling Leads, Datasheet

MFG:TT Electronics/Optek Technology Category:Sensors, Transducers Package Cooled:2.79mm D/C:2.79mm

OPB606A, OPB607A, OPB608A Datasheet download

Five Points

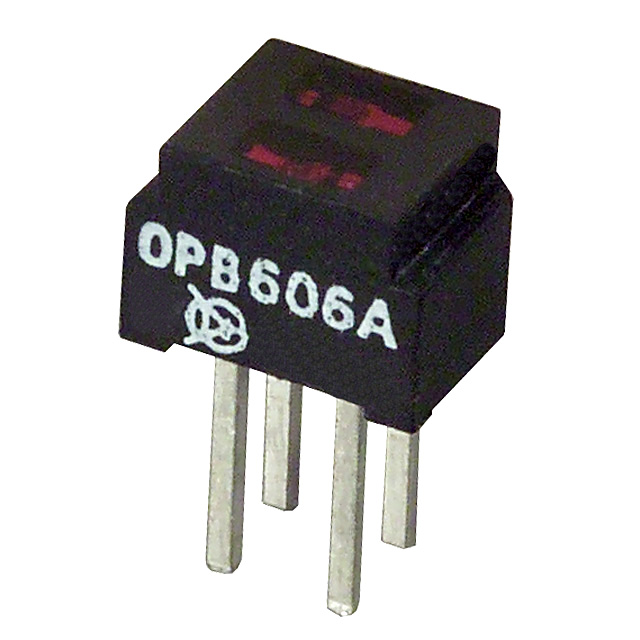

Part Number: OPB606A

Category: Sensors, Transducers

MFG: TT Electronics/Optek Technology

Package Cooled: 2.79mm

D/C: 2.79mm

Description: SENSR OPTO TRANS 1.27MM REFL PCB

Price Break

1
100
250
500
1000
2500
5000
10000
25000

Unit Price

1.73000
1.01000
.97000
.94000
.90000
.87000
.84000
.82000
.79000

Extended Price

1.73
101.00
242.50
470.00
900.00
2175.00
4200.00
8200.00
19750.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

OPB606A Parameters

Technical/Catalog Information	OPB606A
Vendor	TT Electronics/Optek Technology
Category	Sensors, Transducers
Sensing Distance	0.050" (1.27mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	25mA
Current - DC Forward (If)	50mA
Response Time	-
Operating Temperature	-40°C ~ 85°C
Features	Unfocused Sensing
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OPB606A OPB606A 365 1088 ND 3651088ND 365-1088

OPB607A Parameters

Technical/Catalog Information	OPB607A
Vendor	TT Electronics/Optek Technology
Category	Sensors, Transducers
Sensing Distance	0.050" (1.27mm)
Sensing Method	Reflective
Output Type	Photodarlington
Voltage - Collector Emitter Breakdown (Max)	15V
Current - Collector (Ic) (Max)	125mA
Current - DC Forward (If)	50mA
Response Time	-
Operating Temperature	-40°C ~ 85°C
Features	Unfocused Sensing
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OPB607A OPB607A

OPB608A Parameters

Technical/Catalog Information	OPB608A
Vendor	TT Electronics/Optek Technology
Category	Sensors, Transducers
Sensing Distance	0.050" (1.27mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	25mA
Current - DC Forward (If)	50mA
Response Time	-
Operating Temperature	-40°C ~ 85°C
Features	Unfocused Sensing
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OPB608A OPB608A

OPB608A General Description

The OPB608 is a reflective switch that consist of an infrared emitting device (LED or VCSEL) and an NPN silicon hototransistor mounted "side-by-side" on a parallel axis in a black opaque plastic housing. Both the eitting device nd phototransistor are encapsulated in a visible filtering epoxy except the OPB608R. The phototransistor responds to radiation from the emitter only when a reflective object passes within its field of view. The phototransistor has hanced low current roll off to improve the contrast ratio and immunity to background irradiance. The LED versions are designed for near field applications with the VCSEL version being designed for longer distances.

The OPB608A/B/C devices are designed for applications with reflective distances between 0.050" and 0.375" and hen the light pattern is not to be seen by the human eye except for the OPB608R. By utilizing the night nhancement function of a camera, the near infrared light pattern can be seen. This allows the user to see the pattern shining on the reflective object.

The OPB608R device is designed for applications with reflective distances between 0.050" and 0.300" and when the light pattern is to be seen by the human eye. The efficiency of the sensor is lower for optical wavelengths in the visible range thus reducing the distance that can be used.

The OPB608V device is designed for applications with reflective distances between 0.050" and 1.5" and when the light pattern is not to be seen by the human eye. By utilizing the night enhancement function of a camera, the near infrared light pattern can be seen. This allows the user to see the pattern shining on the reflective object.

Reflective distances are dependent upon the drive current for the light emitting device, the wavelength of the light source, and the type of reflective material, therefore each application should be checked for the ability to meet each application.

OPB608A Maximum Ratings

Storage and Operating Temperature	-40 to +85
Lead Soldering Temperature (1/16" (1.6mm) from case for 5 seconds with soldering iron)	260⁽¹⁾
Forward DC Current	50 mA
Peak Forward Current (1s pulse width, 300 pps)	3.0 A
Reverse DC voltage	2.0 V
Power Dissipation	75 mW (3)
Forward DC Current	50 mA
Reverse DC voltage	5.0 V
Power Dissipation	100 mW ⁽³⁾
Forward DC Current	30 mA
Reverse DC voltage	5.0 V
Power Dissipation	75 mW ⁽³⁾
Collector-Emitter Voltage	30 V
Emitter Reverse Current	10 mA
Collector DC Current	25 mA
Power Dissipation	100 mW ⁽³⁾

Notes:
(1) RMA flux is recommended. Duration can be extended to 10 seconds maximum when flow soldering.
(2) Methanol or isopropanol are recommended as cleaning agents. The plastic housing is soluble in chlorinated ydrocarbons and keytones.
(3) Derate Linearly 1.6 mW/ above 25.

OPB608A Features

• Phototransistor Output
• Unfocused for sensing diffuse surface
• Low Cost Plastic Housing
• Enhanced signal to noise ratio
• Reduced ambient light sensitivity
