Part Number: OP580

Category: Sensors, Transducers

MFG: TT Electronics/Optek Technology (VA)

Package Cooled: OP

D/C: 760

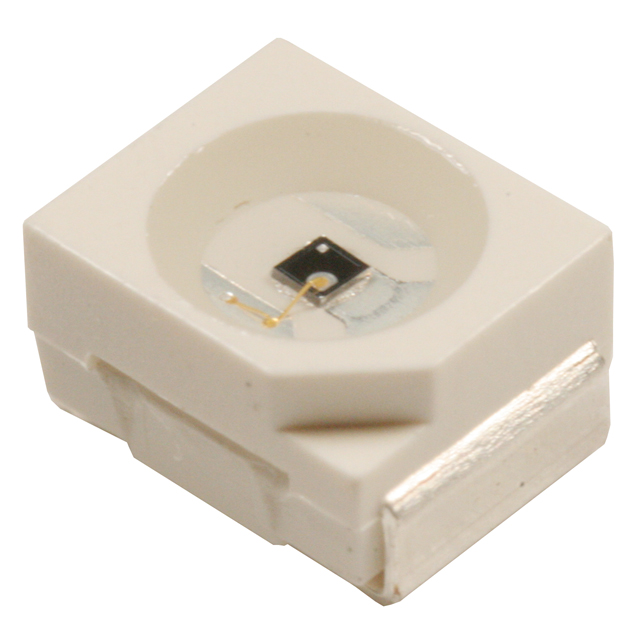

Description: PHOTOTRANSISTOR NPN SMD PLCC-2

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

OP580 Parameters

Technical/Catalog Information	OP580
Vendor	TT Electronics/Optek Technology (VA)
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	20mA
Current - Dark (Id) (Max)	100nA
Power - Max	75mW
Orientation	Top View
Mounting Type	Surface Mount
Package / Case	PLCC-2
Wavelength	935nm
Viewing Angle	100°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OP580 OP580 365 1162 6 ND 36511626ND 365-1162-6

OP580 General Description

The OP580 is an NPN silicon phototransistor mounted in a miniature SMT package. The device has a flat window lens which enables a wide acce-ptance angle. This device is packaged in a plastic leadless chip carrier that is compatible with most automated mounting equipment. The OP580 is mechanically and spectrally matched to the OP280 infrared LED.

OP580 Maximum Ratings

Storage Temperature Range	-40° C to +85° C
Operating Temperature Range	-40° C to +85° C
Lead Soldering Temperature	260° C⁽¹⁾
Collector-Emitter Voltage	30 V
Emitter-Collector Voltage	5V
Collector Current	20 mA
Power Dissipation	75 mW⁽²⁾

OP580 Features

• Wide Acceptance Angle
• Fast Response Time
• Plastic Leadless Chip Carrier (PLCC)

OP580 Typical Application

• Non-Contact Position Sensing
• Datum detection
• Machine automation
• Optical encoders
