NUF8402MN, NUF8402MNT4G ON, NUF8600MNTXG

Table of contents:
Info of NUF8402MN
Info of NUF8402MNT4G ON
Info of NUF8600MNTXG

NUF8402MN, NUF8402MNT4G ON, NUF8600MNTXG Selling Leads, Datasheet

MFG:ON Semiconductor (VA) Category:Filters Package Cooled:4,000 D/C:07+

NUF8402MN, NUF8402MNT4G ON, NUF8600MNTXG Datasheet download

Five Points

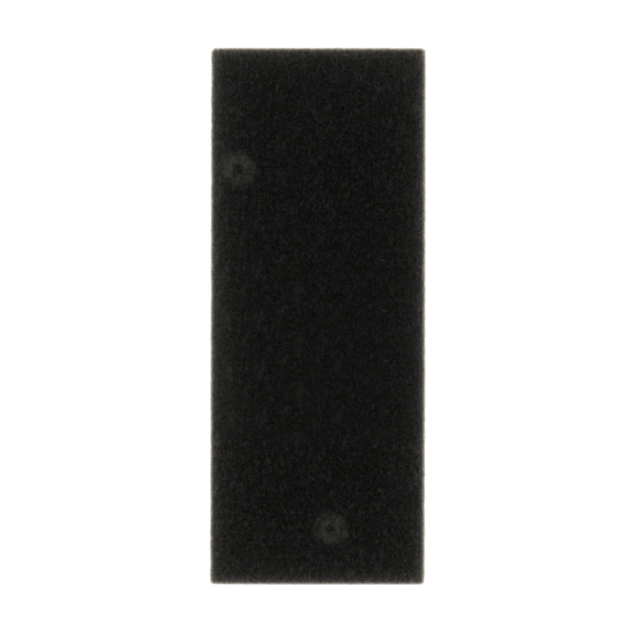

Part Number: NUF8600MNTXG

Category: Filters

MFG: ON Semiconductor (VA)

Package Cooled: 4,000

D/C: 07+

Description: IC EMI FILTER 8CH 16-DFN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NUF8402MN Maximum Ratings

Rating	Symbol	Value	Unit
ESD Discharge IEC61000−4−2 Contact Discharge	V_PP	18	kV
Operating Temperature Range	T_op	−40 to +85	°C
Storage Temperature Range	T_stg	−55 to +150	°C
Maximum Lead Temperature for Soldering Purposes (1.8 in from case for 10 seconds)	T_L	260	°C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

NUF8402MN Features

• EMI Filtering and ESD Protection
• Integration of 24 Discrete Components
• Compliance with IEC61000−4−2 (Level 4)
> 18 kV (Contact)
• DFN Package, 1.6 x 4.0 mm
• Moisture Sensitivity Level 1
• ESD Ratings: Human Body Model = 3B
Machine Model = C
• This is a Pb−Free Device*

NUF8402MN Typical Application

• EMI Filtering and ESD Protection for Data Lines
• Wireless Phones
• Handheld Products
• Notebook Computers
• LCD Displays

NUF8402MN Connection Diagram

NUF8600MNTXG Parameters

Technical/Catalog Information	NUF8600MNTXG
Vendor	ON Semiconductor (VA)
Category	Filters
Inductance	-
Current	-
Filter Type	Signal Line
Termination Style	Surface Mount (SMD,SMT)
Mounting Type	Surface Mount
Voltage - Rated	3.3V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NUF8600MNTXG NUF8600MNTXG NUF8600MNTXGOSCT ND NUF8600MNTXGOSCTND NUF8600MNTXGOSCT
