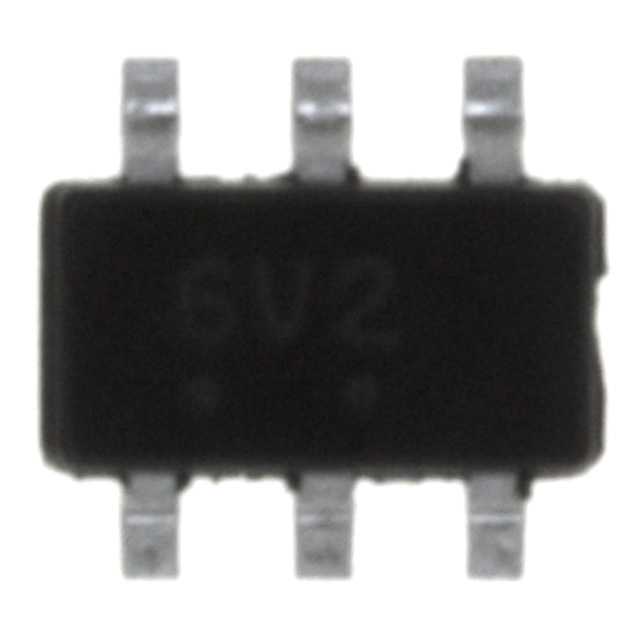

Part Number: NUF2101MT1G

Category: Circuit Protection

MFG: ON Semiconductor (VA)

Package Cooled: DFN2X2-8

D/C: 06+

Description: IC FILTER USB ESD PROTECT 6TSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NUF2101MT1 Maximum Ratings

Rating	Symbol	Value	Unit
Steady State Power	P_D	225	mW
Maximum Junction Temperature	T_J(max)	125	°C
Operating Temperature Range	T_J	-55 to +125	°C
Storage Temperature Range	T_stg	-55 to +125	°C
Lead Solder Temperature (10 second duration)	T_L	260	°C

NUF2101MT1 Features

Provides USB Line Termination, Filtering and ESD Protection
Single IC Offers Cost Savings by Replacing 4 Resistors,2 Capacitors, and 5 TVs diodes
EMI Filtering Prevents Noise from Entering/Leaving the System
IEC61000-4-2 ESD Protection for USB Port
ESD Ratings: Machine Model = C
ESD Ratings: Human Body Model = 3B
Benefits:
TSOP-6 Package Minimizes PCB Space
Integrated Circuit Increases System Reliability versus Discrete Component Implementation
TVs Devices Provide ESD Protection That is Better than a Discre Implementation because the Small IC minimizes Parasitic Inductances

NUF2101MT1 Typical Application

USB Hubs
Computer Motherboards

NUF2101MT1 Connection Diagram

NUF2101MT1G Parameters

Technical/Catalog Information	NUF2101MT1G
Vendor	ON Semiconductor (VA)
Category	Circuit Protection
Package / Case	6-TSOP
Packaging	Digi-Reel?
Technology	Mixed Technology
Applications	General Purpose
Number of Circuits	1 - Single
Voltage - Working	5.25V
Voltage - Clamping	6V
Power (Watts)	225mW
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NUF2101MT1G NUF2101MT1G NUF2101MT1GOSDKR ND NUF2101MT1GOSDKRND NUF2101MT1GOSDKR
