MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-563 D/C:500
NST3904DXV6T5, NST3904DXV6T5G, NST3904F3T5G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOT-563
D/C: 500
Description: TRANSISTOR NPN 40V 0.2A SOT1123
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NST3904DXV6T5
File Size: 102973 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NST3904DXV6T1
File Size: 102973 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NST3904DXV6T1
File Size: 102973 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
| Rating | Symbol | Value | Unit |
| Collector - Emitter Voltage | VCEO | 40 | Vdc |
| Collector - Base Voltage |
VCBO | 60 | Vdc |
| Emitter - Base Voltage | VEBO | 6.0 | Vdc |
| Collector Current - Continuous | IC | 200 | mAdc |
| Electrostatic Discharge | ESD | HBM>16000, MM>2000 |
V |
| Technical/Catalog Information | NST3904DXV6T5G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 2 NPN (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 500mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 100A, 1V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
| Frequency - Transition | 300MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563 |
| Packaging | Cut Tape (CT) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NST3904DXV6T5G NST3904DXV6T5G NST3904DXV6T5GOSCT ND NST3904DXV6T5GOSCTND NST3904DXV6T5GOSCT |

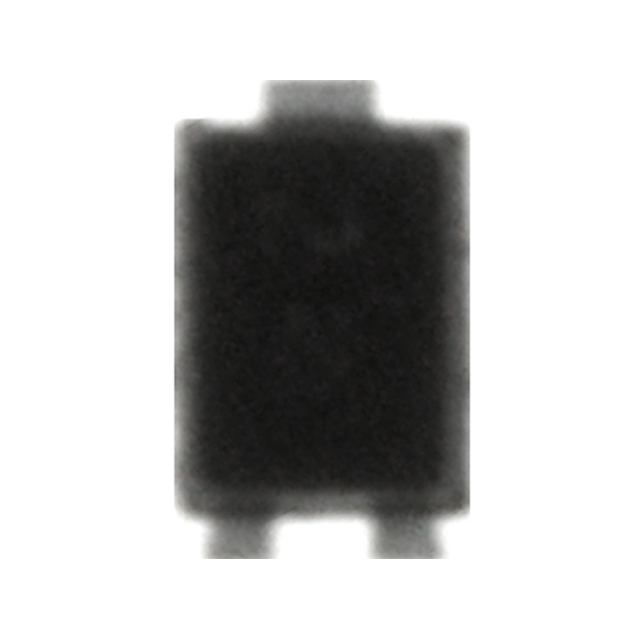

| Technical/Catalog Information | NST3904F3T5G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 347mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
| Frequency - Transition | 200MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-1123 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NST3904F3T5G NST3904F3T5G NST3904F3T5GOSDKR ND NST3904F3T5GOSDKRND NST3904F3T5GOSDKR |
