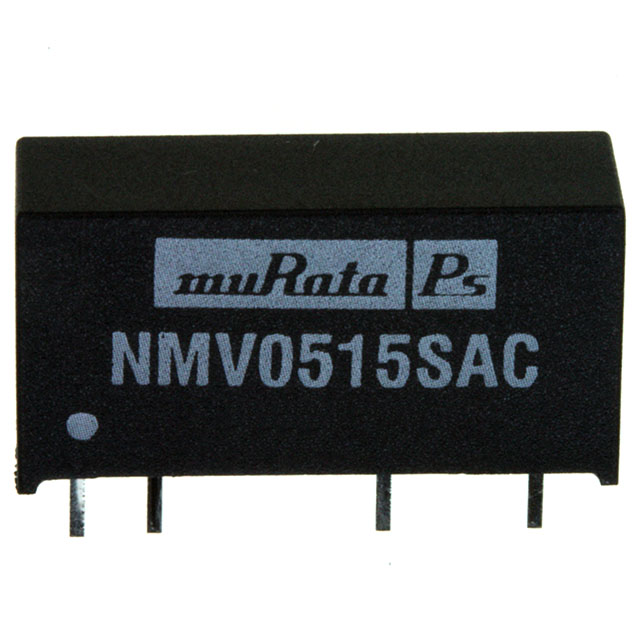

Part Number: NMV0515SAC

Category: Power Supplies

MFG: Murata Power Solutions Inc

Package Cooled: BGA

D/C: 08+

Description: CONV DC/DC 1W 5VIN 15VOUT SIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NMV0515SAC Parameters

Technical/Catalog Information	NMV0515SAC
Vendor	Murata Power Solutions Inc
Category	Power Supplies
Voltage - Input	5VDC
Output	15V
Power (Watts)	1W
Number of Outputs	1
1st Output	15 VDC @ 67mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Tube
Package / Case	7-SIP (5 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NMV0515SAC NMV0515SAC 811 1593 5 ND 81115935ND 811-1593-5

NMV1205S General Description

The NMV series of industrial temperature range DC-DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise. Available in SIP and DIP with dual and single output pinout. All of the rated power may be drawn from a single pin on dual output variants provided the total load does not exceed 1watt.

NMV1205S Maximum Ratings

Short-circuit duration³                                                                        1 second
Internal power dissipation                                                                   560mW
Lead temperature 1.5mm from case for 10 seconds                            300°C
Input voltage V_IN, NMV05 types                                                          7V
Input voltage V_IN, NMV12 types                                                          15V

NMV1205S Features

Wide Temperature performance at full 1 Watt load, 40°C to 85°C

3kVDC Isolation (1 minute)

Single or Dual Output

Industry Standard Pinout

Power Sharing on Dual Output

Efficiency to 78%

Power Density up to 0.90W/cm³

5V & 12V Input

5V, 9V, 12V and 15V Output

Footprint from 1.17cm²

UL 94V-0 Package Material

No Heatsink Required

Internal SMD Construction

Toroidal Magnetics

Fully Encapsulated

No External Components Required

MTTF up to 2.9 Million hours

Custom Solutions Available

No Electrolytic or Tantalum Capacitors

Hotspot Suppliers Product
