NME0505DC, NME0505S, NME0505TM

Table of contents:
Info of NME0505DC
Info of NME0505S
Info of NME0505TM

NME0505DC, NME0505S, NME0505TM Selling Leads, Datasheet

MFG:Murata Power Solutions Inc Category:Power Supplies Package Cooled:2006+ D/C:151

NME0505DC, NME0505S, NME0505TM Datasheet download

Five Points

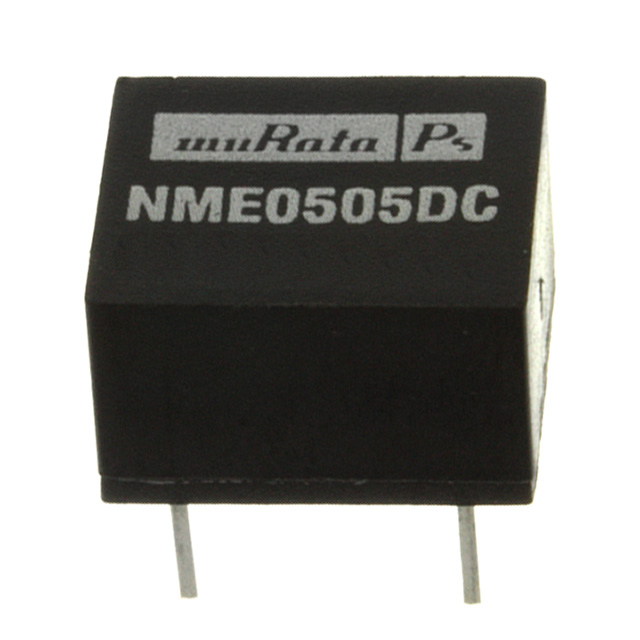

Part Number: NME0505DC

Category: Power Supplies

MFG: Murata Power Solutions Inc

Package Cooled: 2006+

D/C: 151

Description: CONV DC/DC 1W 5VIN 5VOUT DIP SGL

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NME0505DC Parameters

Technical/Catalog Information	NME0505DC
Vendor	Murata Power Solutions Inc
Category	Power Supplies
Voltage - Input	5VDC
Output	5V
Power (Watts)	1W
Number of Outputs	1
1st Output	5 VDC @ 200mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Tube
Package / Case	8-DIP Module (4 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NME0505DC NME0505DC 811 1473 5 ND 81114735ND 811-1473-5

NME0505S General Description

The NME Series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic
isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from 40°C and full 1 watt output at 85°C.

NME0505S Maximum Ratings

Short-circuit duration³                                                                1 second
Internal power dissipation                                                          450mW
Lead temperature 1.5mm from case for 10 seconds                   300°C
Input voltage V_IN, NME05 types                                                 7V
Input voltage V_IN, NME12 types                                                 15V

NME0505S Features

Wide Temperature Performance at
full 1 Watt load, 40°C to 85°C
Single Isolated Output
Industry Standard Pinout
1kVDC Isolation
Efficiency to 80%
Power Density 1.53W/cm3
5V & 12V Input
5V, 9V, 12V and 15V Output
Footprint from 0.69cm2
UL 94V-0 Package Material
No Heatsink Required
Internal SMD Construction
Toroidal Magnetics
Fully Encapsulated
No External Components Required
MTTF up to 2.9 Million Hours
Custom Solutions Available
Pin Compatible with LME &
NML Series
SIP & DIP Package Styles
PCB Mounting

Hotspot Suppliers Product
