MFG:TDK Corporation Category:Inductors, Coils, Chokes Package Cooled:2520 D/C:2010+
NLHV25T-R22J-PF, NLHV25T-R27J-EF, NLHV25T-R27J-PF Datasheet download
Category: Inductors, Coils, Chokes
MFG: TDK Corporation
Package Cooled: 2520
D/C: 2010+
Description: INDUCTOR .27UH 425MA 5% 1008
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download

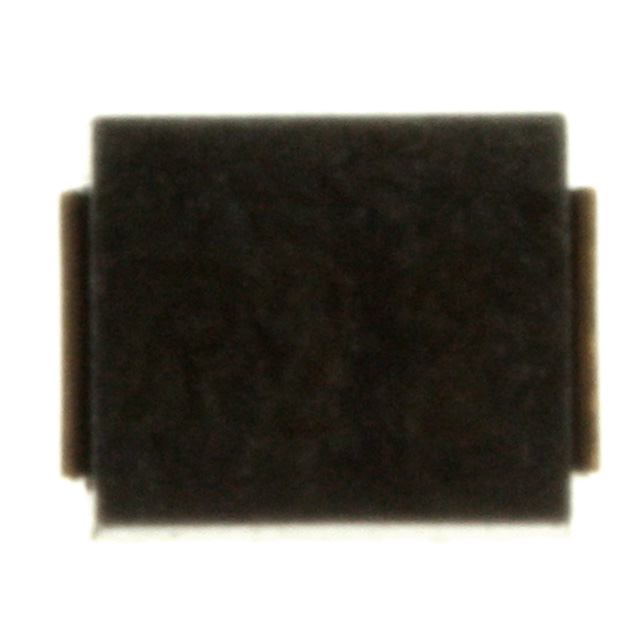

| Technical/Catalog Information | NLHV25T-R22J-PF |
| Vendor | TDK Corporation (VA) |
| Category | Inductors, Coils, Chokes |
| Inductance | 220nH |
| Tolerance | ±5% |
| Package / Case | 0.098" L x 0.079" W x 0.071" H (2.50 mm x 2.00mm x 1.80mm) |
| Packaging | Cut Tape (CT) |
| Type | - |
| Current | 450mA |
| Mounting Type | Surface Mount |
| Q @ Freq | 35 @ 25.2MHz |
| Self Resonant Freq | 450MHz |
| DC Resistance (DCR) | 500.0 mOhm Max |
| Shielding | - |
| Applications | Signal Line |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NLHV25T R22J PF NLHV25TR22JPF 445 3634 1 ND 44536341ND 445-3634-1 |
| Technical/Catalog Information | NLHV25T-R27J-PF |
| Vendor | TDK Corporation |
| Category | Inductors, Coils, Chokes |
| Inductance | 270nH |
| Tolerance | ±5% |
| Package / Case | 0.098" L x 0.079" W x 0.071" H (2.50 mm x 2.00mm x 1.80mm) |
| Packaging | Tape & Reel (TR) |
| Type | - |
| Current | 425mA |
| Mounting Type | Surface Mount |
| Q @ Freq | 35 @ 25.2MHz |
| Self Resonant Freq | 425MHz |
| DC Resistance (DCR) | 580.0 mOhm Max |
| Shielding | - |
| Applications | Signal Line |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NLHV25T R27J PF NLHV25TR27JPF 445 3635 2 ND 44536352ND 445-3635-2 |
