NC4D-JP-DC24V, NC4D-JP-DC48V, NC4D-JP-DC5V

Table of contents:
Info of NC4D-JP-DC24V
Info of NC4D-JP-DC48V
Info of NC4D-JP-DC5V

NC4D-JP-DC24V, NC4D-JP-DC48V, NC4D-JP-DC5V Selling Leads, Datasheet

MFG:Panasonic Electric Works Category:Relays Package Cooled:N/A D/C:2010+

NC4D-JP-DC24V, NC4D-JP-DC48V, NC4D-JP-DC5V Datasheet download

Five Points

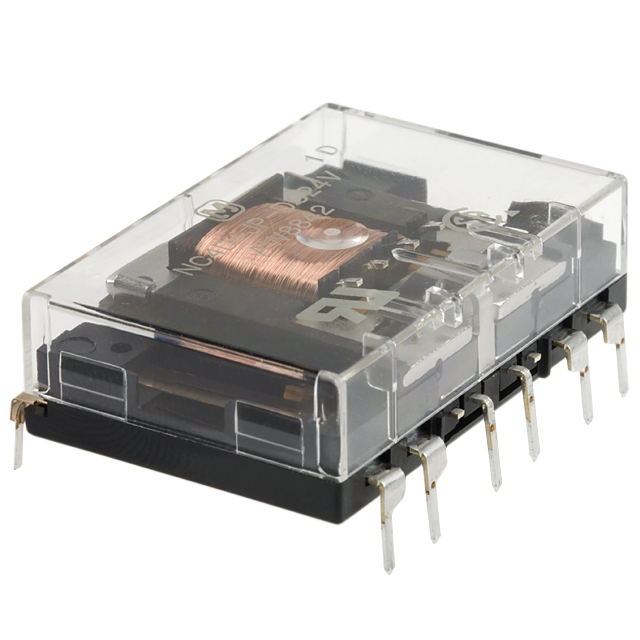

Part Number: NC4D-JP-DC24V

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: N/A

D/C: 2010+

Description: RELAY PWR 5A 4PDT 5VDC FLAT PCB

Price Break

1
25
50
100
500
1000
5000
10000
25000

Unit Price

15.19000
13.95000
12.40000
10.54000
9.30000
8.99000
8.68000
8.24600
8.06000

Extended Price

15.19
348.75
620.00
1054.00
4650.00
8990.00
43400.00
82460.00
201500.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NC4D-JP-DC24V Parameters

Technical/Catalog Information	NC4D-JP-DC24V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	4PDT (4 Form C)
Contact Rating @ Voltage	5A @ 125VAC
Coil Voltage	24VDC
Control Off Voltage (Min)	2.4 VDC
Control On Voltage (Max)	19.2 VDC
Coil Current	30mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NC4D JP DC24V NC4DJPDC24V 255 1936 ND 2551936ND 255-1936

NC4D-JP-DC48V Parameters

Technical/Catalog Information	NC4D-JP-DC48V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	4PDT (4 Form C)
Contact Rating @ Voltage	5A @ 125VAC
Coil Voltage	48VDC
Control Off Voltage (Min)	4.8 VDC
Control On Voltage (Max)	38.4 VDC
Coil Current	15mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NC4D JP DC48V NC4DJPDC48V

NC4D-JP-DC5V Parameters

Technical/Catalog Information	NC4D-JP-DC5V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	4PDT (4 Form C)
Contact Rating @ Voltage	5A @ 125VAC
Coil Voltage	5VDC
Control Off Voltage (Min)	0.5 VDC
Control On Voltage (Max)	4 VDC
Coil Current	144mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NC4D JP DC5V NC4DJPDC5V 255 1937 ND 2551937ND 255-1937
