MFG:TDK-LAMBDA AMERICAS INC Category:Filters Package Cooled:module D/C:09+
MBS4, MBS4830, MBS4850 Datasheet download
Category: Filters
MFG: TDK-LAMBDA AMERICAS INC
Package Cooled: module
D/C: 09+
Description: EMI FILTER 48VDC 50A
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MBS4
File Size: 43841 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBS10
File Size: 43841 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBS10
File Size: 43841 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Type Number | Symbol | MBS2 | MBS4 | MBS6 | MBS8 | MBS10 | Units |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | VRMS | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum Average Forward Rectified Current On glass-epoxy P.C.B. On aluminum substrate |
I(AV) | 0.5 0.8 |
A | ||||
| Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) |
IFSM | 35 | A | ||||
| Maximum Instantaneous Forward Voltage @ 0.4A |
VF | 1.0 | V | ||||
| Maximum DC Reverse Current @ TA=25 at Rated DC Blocking Voltage @ TA=125 |
IR | 5.0 100 |
uA uA | ||||
| Typical Junction Capacitance Per Leg | Cj | 13 | pF | ||||
| Typical Thermal Resistance Per Leg | RJA | 85 | /W | ||||
| Operating Temperature Range | TJ | -55 to +150 | |||||
| Storage Temperature Range | TSTG | -55 to +150 | |||||

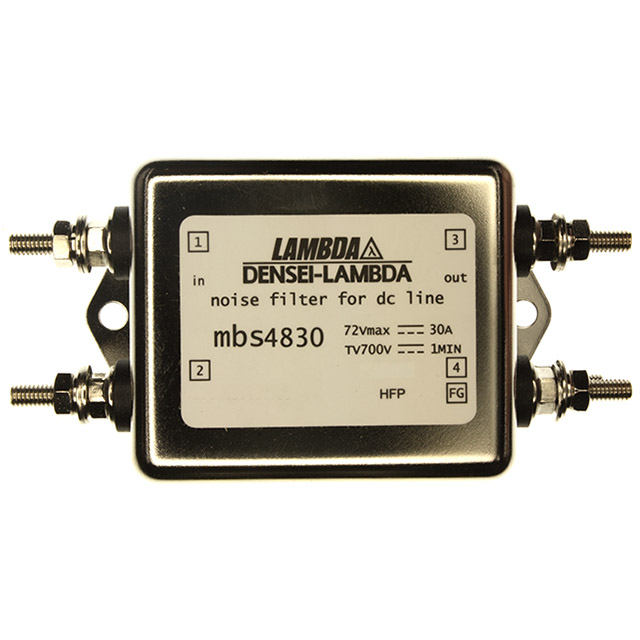

| Technical/Catalog Information | MBS4830 |
| Vendor | TDK-LAMBDA AMERICAS INC |
| Category | Filters |
| Inductance | - |
| Current | 30A |
| Filter Type | Power Line |
| Termination Style | Stud Lug |
| Mounting Type | Chassis Mount |
| Voltage - Rated | 48V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBS4830 MBS4830 285 1469 ND 2851469ND 285-1469 |
| Technical/Catalog Information | MBS4850 |
| Vendor | TDK-LAMBDA AMERICAS INC |
| Category | Filters |
| Inductance | - |
| Current | 50A |
| Filter Type | Power Line |
| Termination Style | Stud Lug |
| Mounting Type | Chassis Mount |
| Voltage - Rated | 48V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBS4850 MBS4850 285 1470 ND 2851470ND 285-1470 |
