MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:09+
MBRF30150CT, MBRF30H100CTG, MBRF30H150CTG Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: TO-220
D/C: 09+
Description: DIODE SCHOTTKY 30A 150V TO-220FP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MBR 1635
File Size: 117476 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBR 1635
File Size: 117476 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBR 1635
File Size: 117476 KB
Manufacturer:
Download : Click here to Download

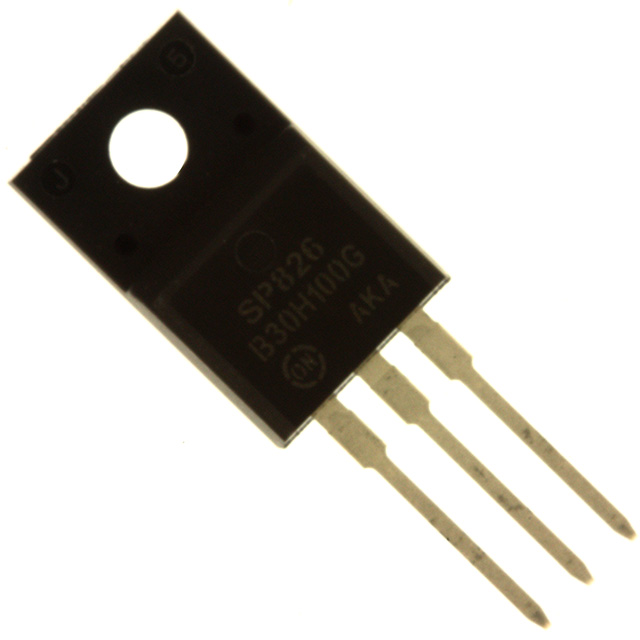

| Technical/Catalog Information | MBRF30H100CTG |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 15A |
| Current - Reverse Leakage @ Vr | 4.5A @ 100V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-3 Full Pack (Straight Leads) |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBRF30H100CTG MBRF30H100CTG MBRF30H100CTGOS ND MBRF30H100CTGOSND MBRF30H100CTGOS |
| Technical/Catalog Information | MBRF30H150CTG |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 150V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 980mV @ 15A |
| Current - Reverse Leakage @ Vr | 60A @ 150V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220FP |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBRF30H150CTG MBRF30H150CTG |
