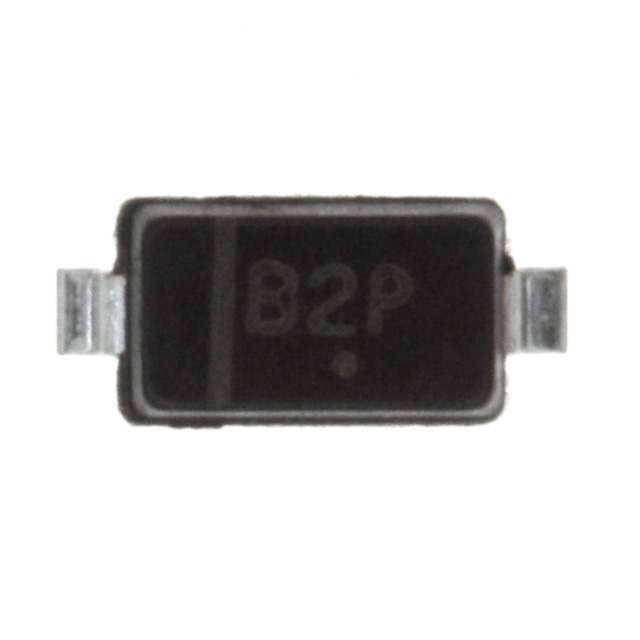

MBR0520LT1/B2Y, MBR0520LT1G, MBR0520LT3 Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: SOD-123
D/C: 08+
Description: DIODE SCHOTTKY 0.5A 20V SOD-123
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MBR 1635
File Size: 117476 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBR 1635
File Size: 117476 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBR0520LT3
File Size: 89673 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
| Technical/Catalog Information | MBR0520LT1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 385mV @ 500mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 250A @ 20V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBR0520LT1G MBR0520LT1G MBR0520LT1GOSCT ND MBR0520LT1GOSCTND MBR0520LT1GOSCT |
| Technical/Catalog Information | MBR0520LT3 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 385mV @ 500mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 250A @ 20V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MBR0520LT3 MBR0520LT3 |
| Rating | Symbol | Value | Unit | |
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
20 | Volts | |
| Average Rectified Forward Current (Rated VR) TL = 90°C | IF(AV) | 0.5 | Amps | |
| Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz) |
IFSM | 5.5 | Amps | |
| Storage Temperature | Tstg | 65 to +125 | °C | |
| Operating Junction Temperature | TJ | 65 to +125 | °C | |
| Voltage Rate of Change (Rated VR) | dv/dt | 1000 | V/s | |
| THERMAL CHARACTERISTICS | ||||
| Thermal Resistance - Junction to Ambient (1) | RJA | 340 | °C/W | |
| Thermal Resistance - Junction to Lead (1) | RJL | 150 | °C/W | |
| ELECTRICAL CHARACTERISTICS | ||||
| Maximum Instantaneous Forward Voltage (2) (iF = 0.1 Amps) (iF = 0.5 Amps) |
VF | TJ = 25°C | TJ = 100°C | Volts |
| 0.300 0.385 |
0.220 0.330 | |||
| Maximum Instantaneous Reverse Current (2) VR = 10 V) (Rated dc Voltage = 20 V) |
IR | TJ = 25°C | TJ = 100°C | mA |
| 75 A 250 A |
5 mA 8 mA | |||
