MFG:Panasonic - SSG (VA) Category:Discrete Semiconductor Products Package Cooled:O603 D/C:32R08N
MA2S11100L, MA2S1110GL, MA2S111S0 Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG (VA)
Package Cooled: O603
D/C: 32R08N
Description: DIODE SWITCH 80V 100MA SSMINI 2P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | MA2S11100L |
| Vendor | Panasonic - SSG (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80V |
| Current - Average Rectified (Io) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA |
| Reverse Recovery Time (trr) | 3ns |
| Current - Reverse Leakage @ Vr | 100nA @ 75V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

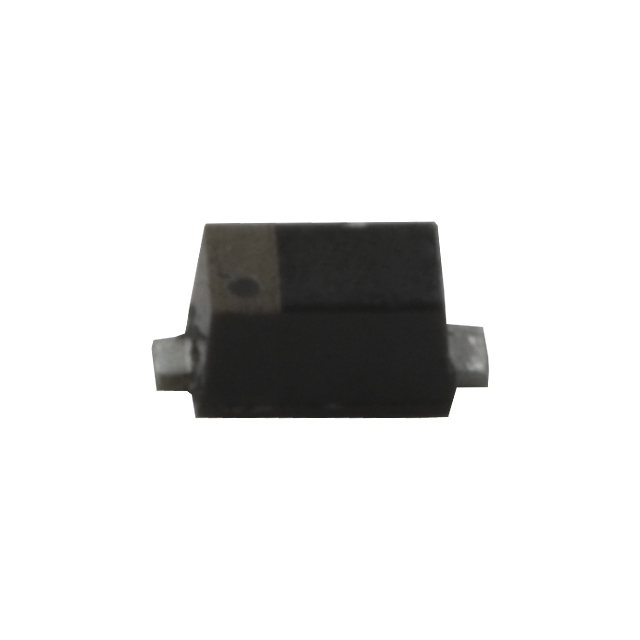

| Package / Case | SS Mini 2P |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MA2S11100L MA2S11100L MA2S11100LDKR ND MA2S11100LDKRND MA2S11100LDKR |
| Technical/Catalog Information | MA2S1110GL |
| Vendor | Panasonic - SSG (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80V |
| Current - Average Rectified (Io) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA |
| Reverse Recovery Time (trr) | 3ns |
| Current - Reverse Leakage @ Vr | 100nA @ 75V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SS Mini 2P |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MA2S1110GL MA2S1110GL MA2S1110GLCT ND MA2S1110GLCTND MA2S1110GLCT |
