MFG:Panasonic - SSG Category:Discrete Semiconductor Products Package Cooled:SOD-323 D/C:09NOPB
MA21D35009JN, MA21D350GL, MA21D3800L Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG

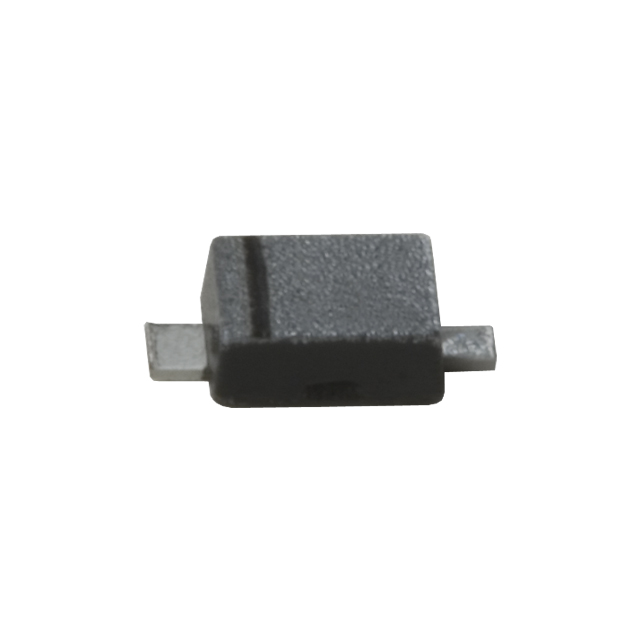

Package Cooled: SOD-323
D/C: 09NOPB
Description: DIODE SCHOTTKY 30V 1A SMINI-2P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA2000
File Size: 96410 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | MA21D3800L |
| Vendor | Panasonic - SSG |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 420mV @ 1A |
| Reverse Recovery Time (trr) | 13ns |
| Current - Reverse Leakage @ Vr | 100μA @ 30V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | S-Mini 2P |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MA21D3800L MA21D3800L MA21D3800LTR ND MA21D3800LTRND MA21D3800LTR |
