LX2201CLQ, LX2202, LX2202CLQ

LX2201CLQ, LX2202, LX2202CLQ Selling Leads, Datasheet

MFG:Microsemi-IPG  Category:Integrated Circuits (ICs)  Package Cooled:06+  D/C:06+

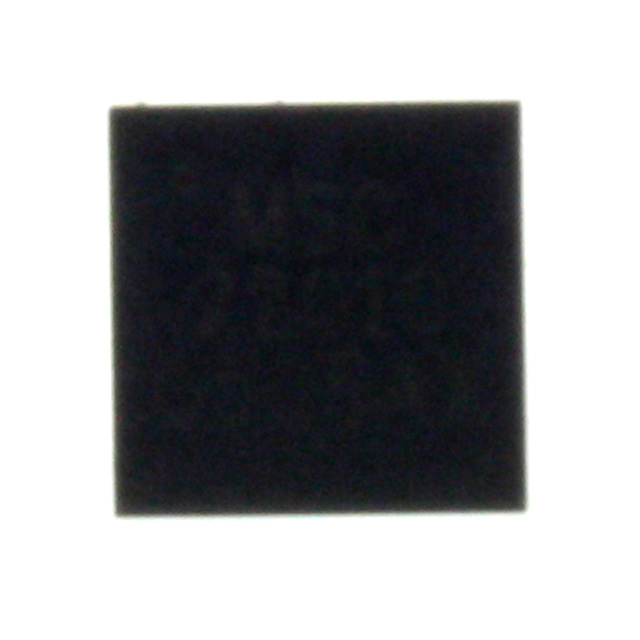

LX2201CLQ Picture

LX2201CLQ, LX2202, LX2202CLQ Datasheet download

Five Points

Part Number: LX2201CLQ

Category: Integrated Circuits (ICs)

MFG: Microsemi-IPG

Package Cooled: 06+

D/C: 06+

Description: IC CHARGER BATT USB LI-ION 20MLP






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

LX2201CLQ Suppliers

More LX2201CLQ Suppliers

Select All

  • LX256B-5F484C

  • Vendor: Lattice D/C: 06+& Qty: 29 Note: IC, GDX64-256, Bus-SW  Adddate: 2024-11-24
  • Inquire Now
  • LEAD-TIMES   Israel
    Contact: Mr.eshel   MSN:eshelmali@hotmail.com
    Tel: 972-8-8699223
    Fax: 972-8-8699225
    (5)

About LX2201CLQ

PDF/DataSheet Download

Datasheet: LX2201CLQ

File Size: 176441 KB

Manufacturer: MICROSEMI [Microsemi Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

LX2202 Suppliers

More LX2202 Suppliers

Select All

  • LX256B-5F484C

  • Vendor: Lattice D/C: 06+& Qty: 29 Note: IC, GDX64-256, Bus-SW  Adddate: 2024-11-24
  • Inquire Now
  • LEAD-TIMES   Israel
    Contact: Mr.eshel   MSN:eshelmali@hotmail.com
    Tel: 972-8-8699223
    Fax: 972-8-8699225
    (5)

About LX2202

PDF/DataSheet Download

Datasheet: LX2202

File Size: 180358 KB

Manufacturer: MICROSEMI [Microsemi Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

LX2202CLQ Suppliers

More LX2202CLQ Suppliers

Select All

  • LX256B-5F484C

  • Vendor: Lattice D/C: 06+& Qty: 29 Note: IC, GDX64-256, Bus-SW  Adddate: 2024-11-24
  • Inquire Now
  • LEAD-TIMES   Israel
    Contact: Mr.eshel   MSN:eshelmali@hotmail.com
    Tel: 972-8-8699223
    Fax: 972-8-8699225
    (5)

About LX2202CLQ

PDF/DataSheet Download

Datasheet: LX2202CLQ

File Size: 180358 KB

Manufacturer: MICROSEMI [Microsemi Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

LX2201CLQ Parameters

Technical/Catalog InformationLX2201CLQ
VendorMicrosemi-IPG
CategoryIntegrated Circuits (ICs)
Battery TypeLi-Ion
FunctionCharge Management
Package / Case20-MLP
PackagingTube
Operating Temperature0°C ~ 70°C
Voltage - Supply4.5 V ~ 6 V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LX2201CLQ
LX2201CLQ

LX2202 General Description

The LX2202 Linear Battery Charger is a multi-state (2 stage) Li-Ion battery charger (Constant current / Constant voltage) that is designed to minimize battery charge time (even from current limited sources such as USB) and provide a simplified interface to control battery discharge. LX2202 features up to 2A charging current from an AC adapter and an isolated battery topology to minimize charge time from current limited sources such as USB. A thermal control loop maintains a safe operating temperature at all times.

LX2202 Maximum Ratings

Supply Voltage (VUSB or VDD ) ..........................................................-0.3V to 7V
Analog Input Signals (VIDx, VM, SNS) ...................................................-0.3V to 7V
Battery Charging Current (IBAT)..........................................................................2A
Discharge Current (IVDD).....................................................................................3A
Operating Junction Temperature.................................................................. 150°C
Storage Temperature Range..........................................................-65°C to 150°C
USB Maximum DC Current ..............................................................................500mA
USB Maximum Surge Current.................................................................................2A
RoHS / Pb-free Peak Package Solder Reflow Temperature
(40 second maximum exposure) ........................................................ 260°C(+0, -5)

LX2202 Features

  Up to 2A Charge Current
  Internal Pass Element Can Function as a Reverse Direction Load Switch
  USB Compliant Charging States using optional USB input
  Isolated Battery Topology
  Low RdsON in Discharge Mode
  Full Capacity Charging
  True Charge Indicator
Wall Supply Regulator Tolerance 5V + 10%
Topping Charge with Voltage Monitoring Mode
Improved charge/discharge mode detection circuitry
Small, High Power 20-lead MLP package
Selectable Li-Ion Battery for 4.1V or 4.2V Applications

LX2202 Typical Application

Batteries up to 4AH Ratings (C/2)
  Cell Phones
  PDAs
  Charging Cradles
  Digital Cameras
  Low Cost Single Li-Ion Cell Chargers

LX2202 Connection Diagram
