MFG:Panasonic - SSG (VA) Category:Optoelectronics Package Cooled:06+ D/C:09+
LNJ206R5A0KB, LNJ206R5ARA, LNJ208R8ARA Datasheet download
Category: Optoelectronics
MFG: Panasonic - SSG (VA)
Package Cooled: 06+
D/C: 09+
Description: LED RED HI BRT SS TYPE LO CUR SM
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LNJ010C6BRAV
File Size: 30200 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LNJ206R5ARA
File Size: 32209 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LNJ208R8ARA
File Size: 31630 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download

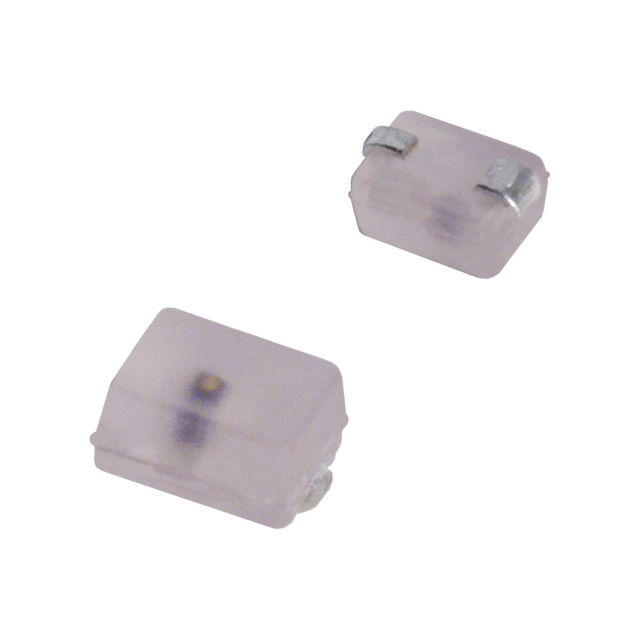

| Technical/Catalog Information | LNJ206R5ARA |
| Vendor | Panasonic - SSG |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Rectangle, 1.7mm x 1.25mm |
| Millicandela Rating | 5mcd |
| Voltage - Forward (Vf) Typ | 1.72V |
| Wavelength - Dominant | 660nm |
| Wavelength - Peak | 660nm |
| Current - Test | 20mA |
| Viewing Angle | 180° |
| Lens Type | Diffused, Red Tinted |
| Luminous Flux | 31 mlm |
| Package / Case | 1.7mm x 1.25mm x 1mm |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LNJ206R5ARA LNJ206R5ARA P11136TR ND P11136TRND P11136TR |
|
Lighting Color |
PD(mW) |
IF(mA) |
IFP(mA)* |
VR(V) |
Topr( ) |
Tstg( ) |
|
Red |
60 |
20 |
60 |
4 |
-25 ~ +85 |
-30 ~ +100 |
|
Ultra Bright Red |
60 |
20 |
60 |
3 |
-25 ~ +85 |
-30 ~ +100 |
|
Green |
60 |
20 |
60 |
4 |
-25 ~ +85 |
-30 ~ +100 |
|
Soft Orange |
60 |
20 |
60 |
3 |
-25 ~ +85 |
-30 ~ +100 |
| Technical/Catalog Information | LNJ208R8ARA |
| Vendor | Panasonic - SSG (VA) |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Rectangle, 1.1mm x 0.8mm |
| Millicandela Rating | 6.7mcd |
| Voltage - Forward (Vf) Typ | 1.72V |
| Wavelength - Dominant | 660nm |
| Wavelength - Peak | 660nm |
| Current - Test | 10mA |
| Viewing Angle | 150° |
| Lens Type | Diffused, Red Tinted |
| Luminous Flux | 31 mlm |
| Package / Case | 0603 (1608 metric) |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LNJ208R8ARA LNJ208R8ARA P524CT ND P524CTND P524CT |
|
Lighting Color |
PD(mW) |
IF(mA) |
IFP(mA)* |
VR(V) |
Topr() |
Tstg() |
|
Red |
50 |
20 |
100 |
3 |
-30 ~ +85 |
-40 ~ +100 |
|
Green |
30 |
10 |
50 |
4 |
-30 ~ +85 |
-40 ~ +100 |
|
Green |
50 |
20 |
100 |
4 |
-30 ~ +85 |
-40 ~ +100 |
|
Amber |
50 |
20 |
100 |
4 |
-30 ~ +85 |
-40 ~ +100 |
|
Amber |
30 |
10 |
50 |
4 |
-30 ~ +85 |
-40 ~ +100 |
|
Orange |
30 |
10 |
50 |
3 |
-30 ~ +85 |
-40 ~ +100 |
|
Soft Orange |
50 |
20 |
10 |
3 |
-30 ~ +85 |
-40 ~ +100 |
