MFG:Panasonic - SSG Category:Optoelectronics Package Cooled:LED D/C:08+
LN21RPX, LN2244A, LN2266 Datasheet download
Category: Optoelectronics
MFG: Panasonic - SSG
Package Cooled: LED
D/C: 08+

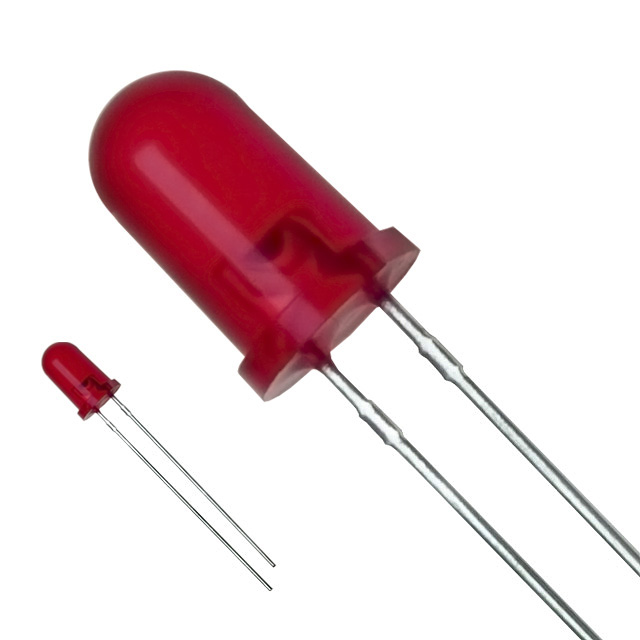

Description: LED RED DIFFUSED 5MM ROUND
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LN21RPX
File Size: 30877 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LN2003
File Size: 55583 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LN2003
File Size: 55583 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | LN21RPX |
| Vendor | Panasonic - SSG |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Round, 5mm, T-1 3/4 |
| Millicandela Rating | 3mcd |
| Voltage - Forward (Vf) Typ | 2.2V |
| Wavelength - Dominant | 700nm |
| Wavelength - Peak | 700nm |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Lens Type | Diffused, Red Tinted |
| Luminous Flux | 1 mlm |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LN21RPX LN21RPX P589 ND P589ND P589 |
| Lighting Color |
PD(mW) |
IF(mA) |
IFP(mA)* |
VR(V) |
Topr(°C) |
Tstg(°C) |
| Red |
70 |
25 |
150 |
4 |
-25 ~ +85 |
-30 ~ +100 |
| Green |
90 |
30 |
150 |
4 |
-25 ~ +85 |
-30 ~ +100 |
| Amber |
90 |
30 |
150 |
4 |
-25 ~ +85 |
-30 ~ +100 |
