LMD18200 General Description
The LMD18200 is a 3A H-Bridge designed for motion control applications. The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure. Ideal for driving DC and stepper motors; the LMD18200 accommodates peak output currents up to 6A. An innovative circuit which facilitates low-loss sensing of the output current has been implemented.
Reliability Metrics
| Part Number | Process | EFR Reject | EFR Sample Size | PPM | LTA Rejects | LTA Device Hours | FITS | MTTF (Hours) |
| LMD18200 MDC | LMDMOS | 0 | 16810 | 0 | 0 | 2200000 | 2 | 624256007 |
| LMD18200T | LMDMOS | 0 | 16810 | 0 | 0 | 2200000 | 2 | 624256007 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.
For more information on Reliability Metrics, please click here.
Application Notes
| Title | Size in Kbytes | Date | |
| AN-694: Application Note 694 A DMOS 3A, 55V, H-Bridge: The LMD18200 | 408 Kbytes | 26-Sep-02 | Download |
| AN-694 (Japanese): Application Note 694 A DMOS 3A, 55V, H-Bridge: The LMD18200 | 400 Kbytes | ||
| AN-828: Application Note 828 Increasing the High Speed Torque of Bipolar Stepper Motors | 808 Kbytes | 1-Oct-02 | Download |
| AN-828 (Japanese): Application Note 828 Increasing the High Speed Torque of Bipolar Stepper Motors | 362 Kbytes |
If you have trouble printing or viewing PDF file(s), see Printing Problems. |
LMD18200 Maximum Ratings
| Function | H-Bridge Driver |
| Output Current | 3000 mA |
| Channels | 2 Channels |
| Supply Min | 12 Volt |
| Supply Max | 55 Volt |
| Temperature Min | -40 deg C |
| Temperature Max | 125 deg C |
| View Using Catalog | |
LMD18200 Features
`Delivers up to 3A continuous output
`Operates at supply voltages up to 55V
`Low RDS(ON) typically 0.3 per switch
`TTL and CMOS compatible inputs
`No "shoot-through" current
`Thermal warning flag output at 145
`Thermal shutdown (outputs off) at 170
`Internal clamp diodes
`Shorted load protection
`Internal charge pump with external bootstrap capability
`Operates at supply voltages up to 55V
`Low RDS(ON) typically 0.3 per switch
`TTL and CMOS compatible inputs
`No "shoot-through" current
`Thermal warning flag output at 145
`Thermal shutdown (outputs off) at 170
`Internal clamp diodes
`Shorted load protection
`Internal charge pump with external bootstrap capability
LMD18200 Typical Application
·DC and stepper motor drives
·Position and velocity servomechanisms
·Factory automation robots
·Numerically controlled machinery
·Computer printers and plotters

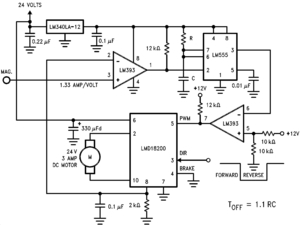

LMD18200 Connection Diagram
