MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:SOT23 D/C:09+
LM4040A IM3-4.1, LM4040A IM3-5.0, LM4040A20IDBZR Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments (VA)

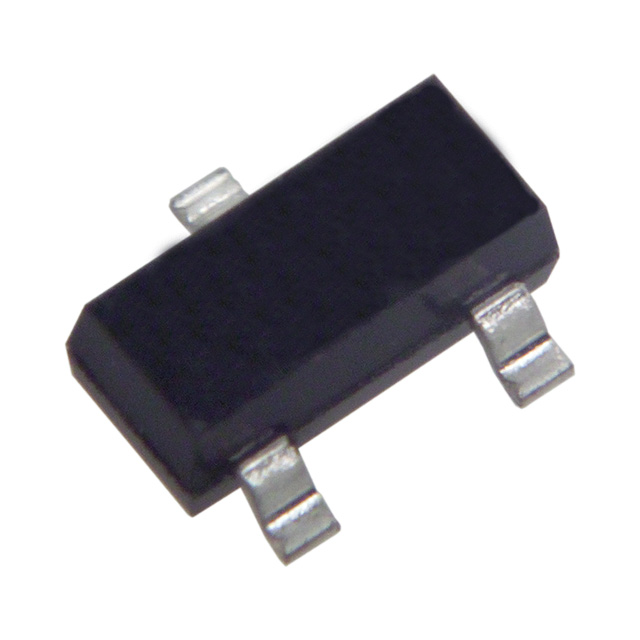

Package Cooled: SOT23
D/C: 09+
Description: IC VOLT REF PREC MCROPWR SOT23-3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LM40
File Size: 378376 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM40
File Size: 378376 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM4040A20IDBZR
File Size: 494182 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
| Technical/Catalog Information | LM4040A20IDBZR |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Reference Type | Shunt |
| Voltage - Output | 2.048V |
| Tolerance | ±0.1% |
| Temperature Coefficient | 100ppm/°C |
| Voltage - Input | - |
| Number of Channels | 1 |
| Current - Cathode | 45A |
| Current - Quiescent | - |
| Current - Output | 15mA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | SOT-23-3, TO-236-3, Micro3?, SSD3, SST3 |
| Packaging | Cut Tape (CT) |
| Drawing Number | 296; 4203227; DBZ; 3 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM4040A20IDBZR LM4040A20IDBZR 296 20857 1 ND 296208571ND 296-20857-1 |
The LM4040A20IDBZR is one member of the LM4040 series which designed as one kind of versatile, easy-to-use references shunt voltage references that cater to a vast array of applications.It can be used in (1)data-acquisition systems;(2)power supplies and power-supply monitors;(3)instrumentation and test equipment;(4)process controls;(5)precision audio;(6)automotive electronics;(7)energy management;(8)battery-powered equipment.
Features of the LM4040A20IDBZR are:(1)fixed output voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, and 10 V;(2)tight output tolerances and low temperature coefficient;(3)low output noise:35 uVRMS typ;(4)wide operating current range:45 uA typ to 15 mA;(5)stable with all capacitive loads;no output capacitor required;(6)available in extended temperature range:-40°C to 125°C.
The absolute maximum ratings of the LM4040A20IDBZR can be summarized as:(1)continuous cathode current:-10 to 25 mA;(2)package thermal impedance: 206 °C/W;(3)operating virtual junction temperature:150 °C;(4)storage temperature range:-65 to 150 °C.If you want to know more information such as the electrical characteristics about the LM4040A20IDBZR,please download the datasheet in www.seekic.com or www.chinaicmart.com .
