LDA201E, LDA210, LDA210E

Table of contents:
Info of LDA201E
Info of LDA210
Info of LDA210E

LDA201E, LDA210, LDA210E Selling Leads, Datasheet

MFG:Clare Category:Isolators Package Cooled:SMD-8P D/C:06+

LDA201E, LDA210, LDA210E Datasheet download

Five Points

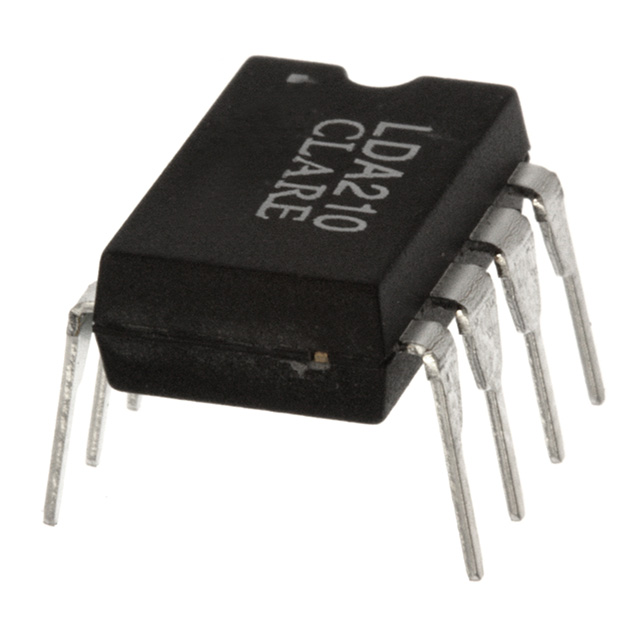

Part Number: LDA210

Category: Isolators

MFG: Clare

Package Cooled: SMD-8P

D/C: 06+

Description: OPTOCOUPLER DUAL TRANS-OUT 8-DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LDA210 Parameters

Technical/Catalog Information	LDA210
Vendor	Clare
Category	Isolators
Voltage - Isolation	3750Vrms
Input Type	AC, DC
Output Type	Darlington
Current - Output / Channel	100mA
Voltage - Output	30V
Vce Saturation (Max)	1V
Current Transfer Ratio (Min)	300% @ 1mA
Mounting Type	Through Hole
Package / Case	8-DIP
Packaging	Tube
Number of Circuits	2 - Dual
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LDA210 LDA210 CLA186 ND CLA186ND CLA186

LDA210 General Description

LDA210 is a dual optocoupler with a single or darlington transistor output. A bi-directional or uni-directional input is available depending on which model you choose. Current transfer ratios range from 33% to 1000%

LDA210 Maximum Ratings

Parameter	Min	Typ	Max	Units
Input Power Dissipation	-	-	150¹	mW
Input Control Current Peak (10ms)	-	-	100 1	mA A
Reverse Input Voltage	-	-	5	V
Phototransistor	-	-	150²	mW
Power Dissipation Total Package Dissipation	-	-	800³	mW
Isolation Voltage Input to Output	3750	-	-	V_RMS
Operational Temperature	-40	-	+85
Storage Temperature	-40	-	+125
Soldering Temperature DIP Package Surface Mount Package (10 Seconds Max.)	-	-	+260 +220

1 Derate Linearly 1.33 mw/

2 Derate Linearly 2.0 mw/

3 Derate Linearly 6.67 mw/

LDA210 Features

• AC and DC Input Versions Available
• Small 8 Pin DIP Package
• 100mA Continuous Load Rating
• 3750V_RMS Input/Output Isolation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available

LDA210 Typical Application

• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Loop Detect
• Ring Detect
•ºCurrent Sensing
