LDA111, LDA111ES, LDA12-48S48

LDA111, LDA111ES, LDA12-48S48 Selling Leads, Datasheet

MFG:Clare  Category:Isolators  Package Cooled:DIP6  D/C:04+

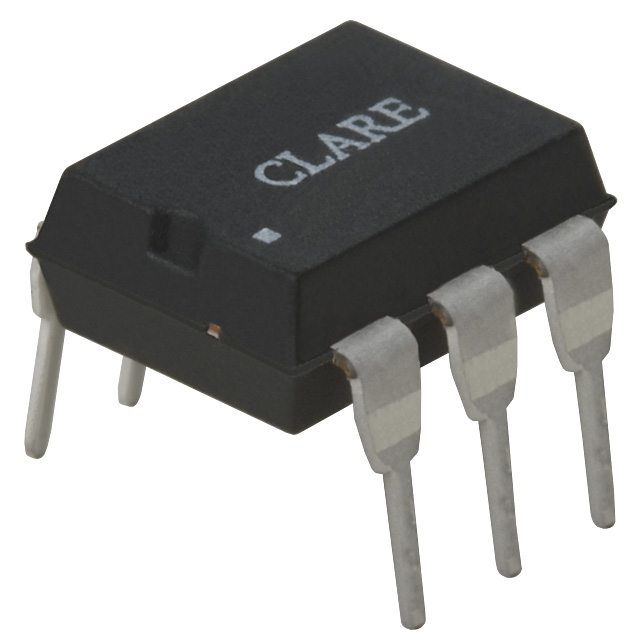

LDA111 Picture

LDA111, LDA111ES, LDA12-48S48 Datasheet download

Five Points

Part Number: LDA111

Category: Isolators

MFG: Clare

Package Cooled: DIP6

D/C: 04+

Description: OPTOCOUPLER SGL TRANS-OUT 6-DIP
