MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:03+ D/C:QFP
L6709, L6709TR-1B, L6710 Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics
Package Cooled: 03+
D/C: QFP
Description: IC CTRLR 6BIT 2PH PROGR 44-TQFP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: L6709
File Size: 42172 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: L6701
File Size: 567053 KB
Manufacturer: ST
Download : Click here to Download
PDF/DataSheet Download
Datasheet: L6710
File Size: 1648896 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | L6710 |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 2 |
| Voltage - Input | 12V |
| Voltage - Output | Adj up to 1.6V |
| Current - Output | 2A |
| Power - Output | 2.5W |

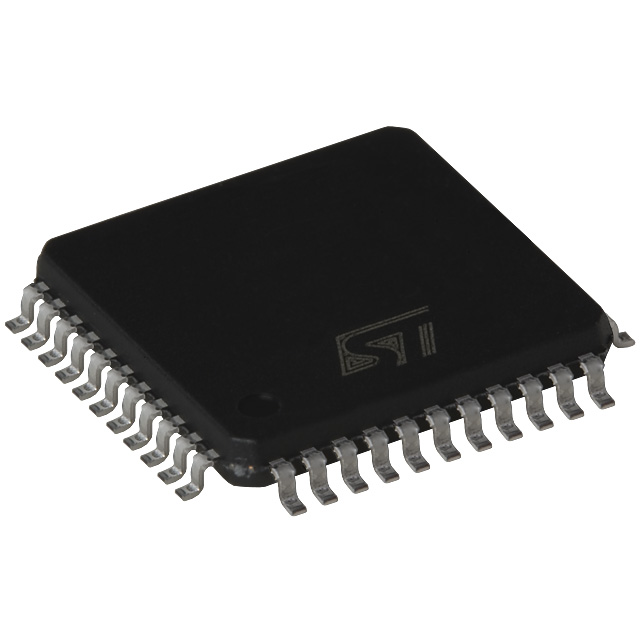

| Package / Case | 44-TQFP |
| Packaging | Tray |
| Internal Switch(s) | Yes |
| Synchronous | - |
| Rds (On) | - |
| Operating Temperature | - |
| Frequency - Switching | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | L6710 L6710 |
The device implements a two phase step-down controller with a 180 phase-shift between each phase with integrated high current drivers in a compact 10x10mm body package with exposed pad. A precise 6-bit digital to analog converter (DAC) allows adjusting the output voltage from 0.8375V to 1.6000V with 12.5mV binary steps managing Dynamic VID code changes.
The high precision internal reference assures the selected output voltage to be within 0.5% over line and temperature variations. The high peak current gate drive affords to have fast switching to the external power mos providing low switching losses.
The device assures a fast protection against load over current and load over/under voltage. An internal crowbar is provided turning on the low side mosfet if an over-voltage is detected.
In case of over-current, the system works in Constant Current mode until UVP
| Symbol | Parameter | Value | Unit |
| Vcc, VCCDR | To PGND | 15 | V |
| VBOOT-VPHASE | Boot Voltage | 15 | V |
| VUGATE1-VPHASE1 VUGATE2-VPHASE2 |
15 | V | |
| LGATE1, PHASE1, LGATE2, PHASE2 to PGND | -0.3 to Vcc+0.3 | V | |
| VID0 to VID5 | -0.3 to 5 | V | |
| All other pins to PGND | -0.3 to 7 | V | |
| VPHASEx | Sustainable Peak Voltage. T<20nS @ 600kHz | 26 | V |
