J175, J175E3, J176

Table of contents:
Info of J175
Info of J175E3
Info of J176

J175, J175E3, J176 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:03+

J175, J175E3, J176 Datasheet download

Five Points

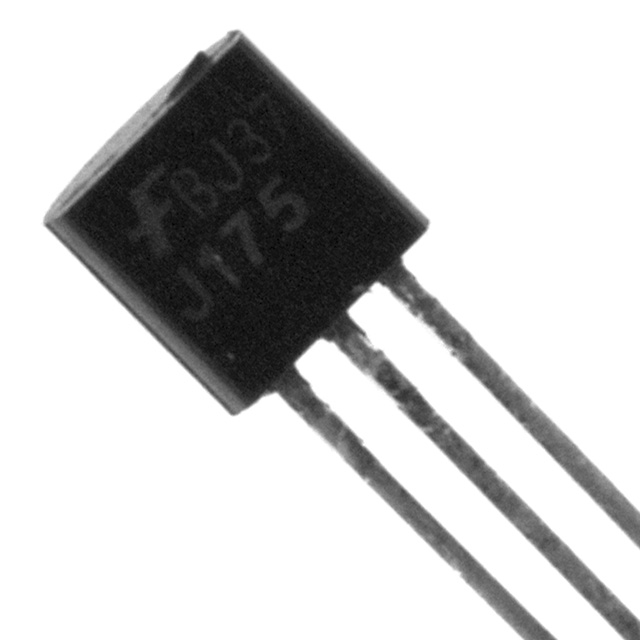

Part Number: J175

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: N/A

D/C: 03+

Description: IC SWITCH P-CHAN 30V 50MA TO-92

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

J175 Parameters

Technical/Catalog Information	J175
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	-
Current - Drain (Idss) @ Vds (Vgs=0)	7mA @ 15V
Gate to Source Voltage (Vgs Max)	*
Input Capacitance (Ciss) @ Vds	-
Power - Max	350mW
Packaging	Bulk
Package / Case	TO-92
Voltage - Cutoff (VGS off) @ Id	3V @ 10nA
Voltage - Breakdown (V(BR)GSS)	30V
Resistance - RDS(On)	125 Ohm
Current Drain (Id) - Max	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	J175 J175 J175FS ND J175FSND J175FS

J175 General Description

P-Channel Switch

This device is designed for low level analog switching sample and hold circuits and chopper stabilized amplifiers. Sourced from Process 88.

J175 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Marking Convention**
J175	Full Production	RoHS Compliant	$0.114	TO-92	3	BULK	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: J175
J175_D26Z	Full Production	RoHS Compliant	N/A	TO-92	3	TAPE REEL	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: J175
J175_D74Z	Full Production	RoHS Compliant	N/A	TO-92	3	AMMO	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: J175
J175_D75Z	Full Production	RoHS Compliant	N/A	TO-92	3	AMMO	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: J175

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product J175 is available. Click here for more information .

J176 Parameters

Technical/Catalog Information	J176
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	-
Current - Drain (Idss) @ Vds (Vgs=0)	2mA @ 15V
Gate to Source Voltage (Vgs Max)	*
Input Capacitance (Ciss) @ Vds	-
Power - Max	350mW
Packaging	Bulk
Package / Case	TO-92
Voltage - Cutoff (VGS off) @ Id	1V @ 10nA
Voltage - Breakdown (V(BR)GSS)	30V
Resistance - RDS(On)	250 Ohm
Current Drain (Id) - Max	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	J176 J176 J176FS ND J176FSND J176FS
