ISL8120CRZ, ISL8121IRZ, ISL8121IRZ-T

Table of contents:
Info of ISL8120CRZ
Info of ISL8121IRZ
Info of ISL8121IRZ-T

ISL8120CRZ, ISL8121IRZ, ISL8121IRZ-T Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:QFN/32 D/C:09+

ISL8120CRZ, ISL8121IRZ, ISL8121IRZ-T Datasheet download

Five Points

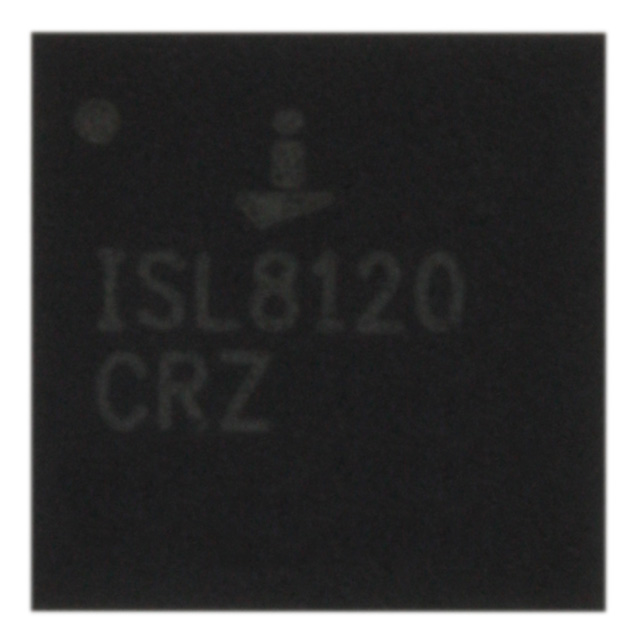

Part Number: ISL8120CRZ

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: QFN/32

D/C: 09+

Description: IC CTRLR PWM BUCK 2PHASE 24-QFN

Price Break

1
25
100

Unit Price

9.23000
6.46000
4.31000

Extended Price

9.23
161.50
431.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ISL8120CRZ Parameters

Technical/Catalog Information	ISL8120CRZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage Mode
Number of Outputs	2
Package / Case	32-QFN
Packaging	Tube
Duty Cycle	90%
Voltage - Supply	2.97 V ~ 22 V
Frequency-Max	1.5MHz
Buck	Yes
Boost	No
Flyback	No
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Drawing Number	*
Operating Temperature	0°C ~ 70°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ISL8120CRZ ISL8120CRZ

ISL8121IRZ Parameters

Technical/Catalog Information	ISL8121IRZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage Mode
Number of Outputs	1
Package / Case	24-QFN
Packaging	Tube
Duty Cycle	66%
Voltage - Supply	3 V ~ 20 V
Frequency-Max	2MHz
Buck	Yes
Boost	No
Flyback	No
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Drawing Number	*
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ISL8121IRZ ISL8121IRZ

ISL8121IRZ-T Parameters

Technical/Catalog Information	ISL8121IRZ-T
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage Mode
Number of Outputs	1
Package / Case	24-QFN
Packaging	Tape & Reel (TR)
Duty Cycle	66%
Voltage - Supply	3 V ~ 20 V
Frequency-Max	2MHz
Buck	Yes
Boost	No
Flyback	No
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Drawing Number	*
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ISL8121IRZ T ISL8121IRZT
