ISL5416, ISL5417, ISL54200IRZ

Table of contents:
Info of ISL5416
Info of ISL5417
Info of ISL54200IRZ

ISL5416, ISL5417, ISL54200IRZ Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:BGA D/C:05+

ISL5416, ISL5417, ISL54200IRZ Datasheet download

Five Points

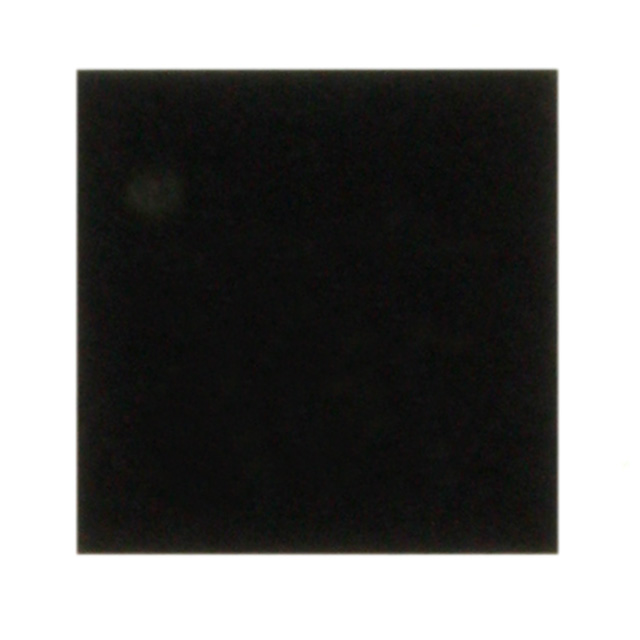

Part Number: ISL54200IRZ

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: BGA

D/C: 05+

Description: IC USB SWITCH DUAL SPDT 10TDFN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ISL5416 Parameters

ISL5416 Features

Up to 95MSPS Input
Four Parallel 16-bit Fixed or 17-bit Floating Point Inputs
Programmable RF Attenuator/VGA Control
32-Bit Programmable Carrier NCO with > 110dB SFDR
20-bit Internal Data Path
Filter Functions
- Multi-Stage Cascaded-Integrator-Comb (CIC) Filter
- Two programmable FIR Filters (first up to 32-taps, second up to 64-taps)
- Half Band Interpolation Filter
- Resampling FIR Filter
Overall decimation from 1 to >4096
Digital AGC with up to 96dB of Gain Range
Up to Four Independent 16-bit Parallel Outputs
Serial Output Option
16-bit Parallel �P Interface
1.8V core, 3.3V I/O Operation
Evaluation Board and Configuration Software available

ISL5416 General Description

Down Converter, Quad, Wideband, Programmable, (WPDC), Fixed or Floating Point Inputs, 32-Bit Programmable Carrier NCO, SFDR >110dB

ISL5416 Features

Up to 95MSPS Input
Four Parallel 16-bit Fixed or 17-bit Floating Point Inputs
Programmable RF Attenuator/VGA Control
32-Bit Programmable Carrier NCO with > 110dB SFDR
20-bit Internal Data Path
Filter Functions
- Multi-Stage Cascaded-Integrator-Comb (CIC) Filter
- Two programmable FIR Filters (first up to 32-taps, second up to 64-taps)
- Half Band Interpolation Filter
- Resampling FIR Filter
Overall decimation from 1 to >4096
Digital AGC with up to 96dB of Gain Range
Up to Four Independent 16-bit Parallel Outputs
Serial Output Option
16-bit Parallel �P Interface
1.8V core, 3.3V I/O Operation
Evaluation Board and Configuration Software available

ISL5416 Typical Application

A/D Range Using the ISL5416 3G QPDC

ISL5416 Datasheet

Automatic Gain Control (AGC) in ISL5416 3G QPDC

CDMA2000 and W-CDMA on the ISL5416 Quad Programmable Down Converter

ISL54200IRZ Parameters

Technical/Catalog Information	ISL54200IRZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Type	USB Switch
Voltage Supply Source	Single Supply
Voltage - Supply, Single/Dual (±)	2.7 V ~ 5.5 V
Circuit	2 x SPDT
On-State Resistance	10 Ohm
Mounting Type	Surface Mount
Package / Case	10-TDFN
Packaging	Tube
Current - Supply	20nA
Operating Temperature	-40°C ~ 85°C
Function	USB Switch
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ISL54200IRZ ISL54200IRZ
