IRADK31, IRAMS06UP60A, IRAMS06UP60APBF

IRADK31, IRAMS06UP60A, IRAMS06UP60APBF Selling Leads, Datasheet

MFG:International Rectifier  Category:Motors, Solenoids, Driver Boards/Modules  Package Cooled:ir  D/C:dc04

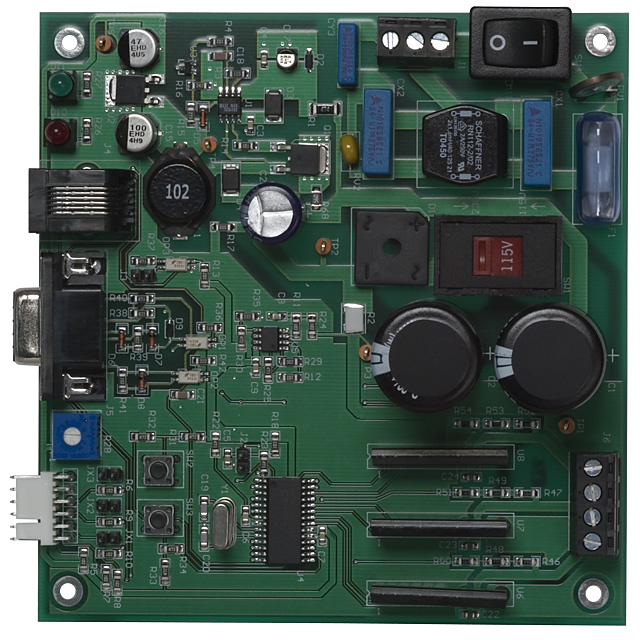

IRADK31 Picture

IRADK31, IRAMS06UP60A, IRAMS06UP60APBF Datasheet download

Five Points

Part Number: IRADK31

Category: Motors, Solenoids, Driver Boards/Modules

MFG: International Rectifier

Package Cooled: ir

D/C: dc04

Description: IC POWER MODULE PLUG N DRIVE INT






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

IRADK31 Suppliers

More IRADK31 Suppliers

Select All

About IRADK31

PDF/DataSheet Download

Datasheet: IRADK31

File Size: 412799 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRAMS06UP60A Suppliers

More IRAMS06UP60A Suppliers

Select All

About IRAMS06UP60A

PDF/DataSheet Download

Datasheet: IRAMS06UP60A

File Size: 456134 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRAMS06UP60APBF Suppliers

More IRAMS06UP60APBF Suppliers

Select All

About IRACO201

PDF/DataSheet Download

Datasheet: IRACO201

File Size: 127752 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRADK31 Parameters

Technical/Catalog InformationIRADK31
VendorInternational Rectifier
CategoryProgrammers, Development Systems
Main PurposePower Management, Motor Control
Primary Attributes3-Ph BLDC 1/3 HP, 120 ~ 230 VAC
Secondary AttributesGUI Driven or Stand Alone, Over Current Protection, Opto-Isolated RS-232,
Supplied ContentsBoard, CD, Samples
Utilized IC / PartIR3101, IR3103, IR3104
EmbeddedNo
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names IRADK31
IRADK31

IRAMS06UP60A Parameters

Technical/Catalog InformationIRAMS06UP60A
VendorInternational Rectifier
CategoryMotors, Solenoids, Driver Boards/Modules
Motor Type3-Phase AC
Transistor TypeIGBT
Number of Motors1
Voltage - Output600V
Current - Output6A
Voltage - Logic Supply12 V ~ 20 V
Package / CasePCB Module
Termination StylePC Pin
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRAMS06UP60A
IRAMS06UP60A

IRAMS06UP60A General Description

International Rectifier's IRAMS06UP60A is an Integrated Power Module developed and optimized fo electronic motor control in appliance applications specifically for VF compressor drives for refrigerators and freezer or in heating and ventilation as electronic fan controls. The IRAMS06UP60A offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.

A built-in temperature monitor and over-current protection, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation.

The integration of the bootstrap diodes for the high-side driver section, and the single polarity power supply required to drive the internal circuitry, simplify the utilization of the module and deliver further cost reduction advantages.

IRAMS06UP60A Maximum Ratings

Parameter Description Max. Value Units
VCES Maximum IGBT Blocking Voltage 600 V
V+ Positive Bus Input Voltage 450
IO @ TC =25 RMS Phase Current 6 A
IO @ TC =100 RMS Phase Current 3
IPK Max Peak Phase Current (tp<100ms) 10
FP Maximum PWM Carrier Frequency 20 kHz
Pd Maximum Power dissipation per Phase  7.5 W
Viso Isolation Voltage (1min) 2000 VRMS
TJ(IGBT& Diodes) Operating Junction temperature Range -40 to +150
TJ(Drver IC) Operating Junction temperature Range -40 to +150
T Mounting torque Range (M3 screw) 0.8 to 1.0 Nm

IRAMS06UP60A Features

· Integrated Gate Drivers and Bootstrap Diodes
· Temperature Monitor
· Overcurrent shutdown
· Fully Isolated Package.
· Low VCE(on) Non Punch Through IGBT Technology
· Undervoltage lockout for all channels
· Matched propagation delay for all channels
· Schmitt-triggered input logic
· Cross-conduction prevention logic
· Lower di/dt gate driver for better noise immunity
· Motor Power range 0.1~0.5kW / 85~253 Vac
· Isolation 2000VRMS /1min
