IMZ4, IMZ4A, IMZ4T108

Table of contents:
Info of IMZ4
Info of IMZ4A
Info of IMZ4T108

IMZ4, IMZ4A, IMZ4T108 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:Sot-163 D/C:ROHM

IMZ4, IMZ4A, IMZ4T108 Datasheet download

Five Points

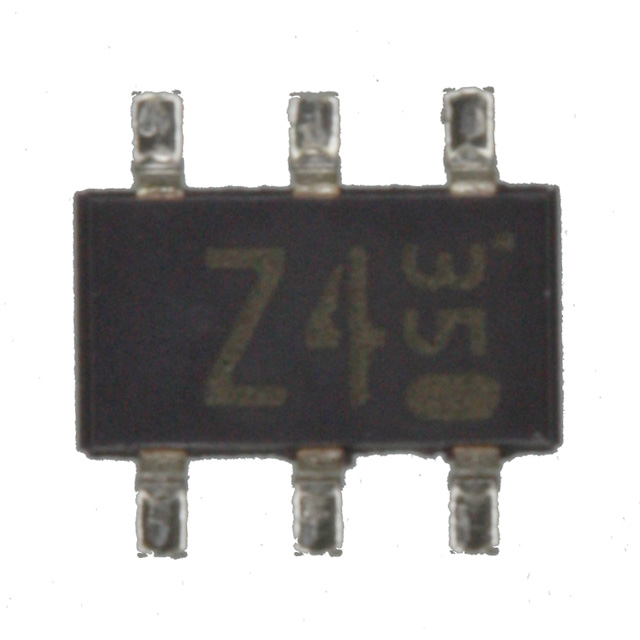

Part Number: IMZ4T108

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: Sot-163

D/C: ROHM

Description: TRANS NPN/PNP 32V 500MA SOT-457

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IMZ4 Features

· Includes a 2SA1036K and a 2SC411K transistor in a SMT package.
· Mounting possible with SMT3 automatic mounting machine.
· Transistor elements are independent, eliminating interference.
·High collector current.
I_C = 500mA
· Mounting cost and area can be cut in half.

IMZ4T108 Parameters

Technical/Catalog Information	IMZ4T108
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN + PNP (Dual)
Voltage - Collector Emitter Breakdown (Max)	32V
Current - Collector (Ic) (Max)	500mA
Power - Max	300mW
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 100mA, 3V
Vce Saturation (Max) @ Ib, Ic	-
Frequency - Transition	250MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SC-74-6, SOT-457, SMT6, SSOT-6, 6-TSOP
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IMZ4T108 IMZ4T108 IMZ4T108TR ND IMZ4T108TRND IMZ4T108TR
