ICS542, ICS542M, ICS542MLF Datasheet download
Category: Integrated Circuits (ICs)
MFG: IDT, Integrated Device Technology Inc
Package Cooled: SOP-8
D/C: 08+
Description: IC CLK DIVIDER 156MHZ 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ICS542MT
File Size: 59313 KB
Manufacturer: ICST [Integrated Circuit Systems]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICS542MT
File Size: 59313 KB
Manufacturer: ICST [Integrated Circuit Systems]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICS1493-17
File Size: 252572 KB
Manufacturer: ICST
Download : Click here to Download
The ICS542 is a cost effective way to produce a high quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz, and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the other. So, for instance, if a 100 MHz clock is used, the ICS542 can produce low skew 50 MHz and 25 MHz clocks, or low skew 25 MHz and 12.5 MHz clocks. The chip has an all-chip power down mode that stops the outputs low, and an OE pin that tri-states the outputs.
The ICS542 is a member of the ICS ClockBlocks™ family of clock building blocks. See the ICS541 and ICS543 for other clock dividers, and the ICS501, 502, 511, 512 and 525 for clock multipliers.
| Technical/Catalog Information | ICS542M |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Integrated Circuits (ICs) |
| Type | Clock Divider |
| Voltage - Supply | 3 V ~ 5.5 V |
| Number of Outputs | 2 |
| Input | CMOS |
| Output | CMOS |
| Frequency-Max | 156MHz |
| Package / Case | 8-SOIC |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | ICS542M ICS542M |
The ICS542 is a cost effective way to produce a high quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz, and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the other. So, for instance, if a 100 MHz clock is used, the ICS542 can produce low skew 50 MHz and 25 MHz clocks, or low skew 25 MHz and 12.5 MHz clocks. The chip has an all-chip power down mode that stops the outputs low, and an OE pin that tri-states the outputs.
The ICS542 is a member of the ICS ClockBlocks™ family of clock building blocks. See the ICS541 and ICS543 for other clock dividers, and the ICS501, 502, 511, 512 and 525 for clock multipliers.
| Parameter | Conditions | Minimum | Maximum | Units |
| Supply voltage, VDD | Referenced to GND | 7 | V | |
| Inputs | Referenced to GND | -0.5 | VDD+0.5 | V |
| Clock Output | Referenced to GND | -0.5 | VDD+0.5 | V |
| Ambient Operating Temperature | 0 | 70 | ||
| Soldering Temperature | Max of 10 seconds | 260 | ||
| Storage temperature | -65 | 150 |

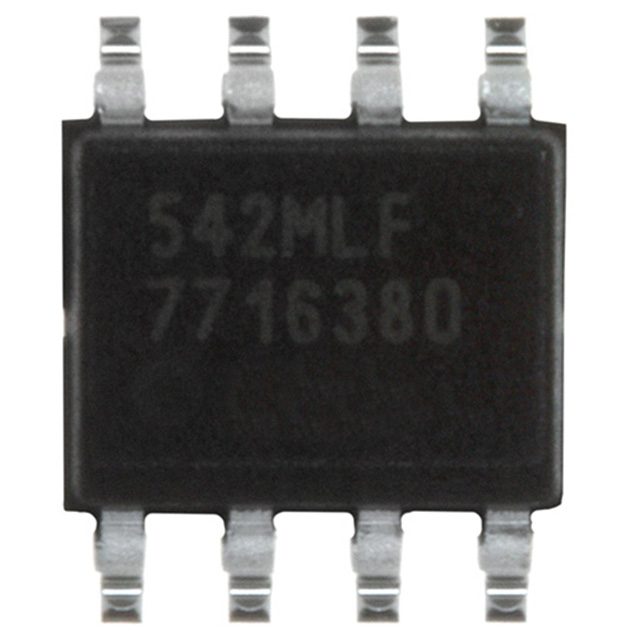

| Technical/Catalog Information | ICS542MLF |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Integrated Circuits (ICs) |
| Type | Clock Divider |
| Voltage - Supply | 3 V ~ 5.5 V |
| Number of Outputs | 2 |
| Input | CMOS |
| Output | CMOS |
| Frequency-Max | 156MHz |
| Package / Case | 8-SOIC |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ICS542MLF ICS542MLF 800 1053 5 ND 80010535ND 800-1053-5 |
