ICS502, ICS5021, ICS502MLF Datasheet download
Category: Integrated Circuits (ICs)
MFG: IDT, Integrated Device Technology Inc
Package Cooled: 06+
D/C: 09+

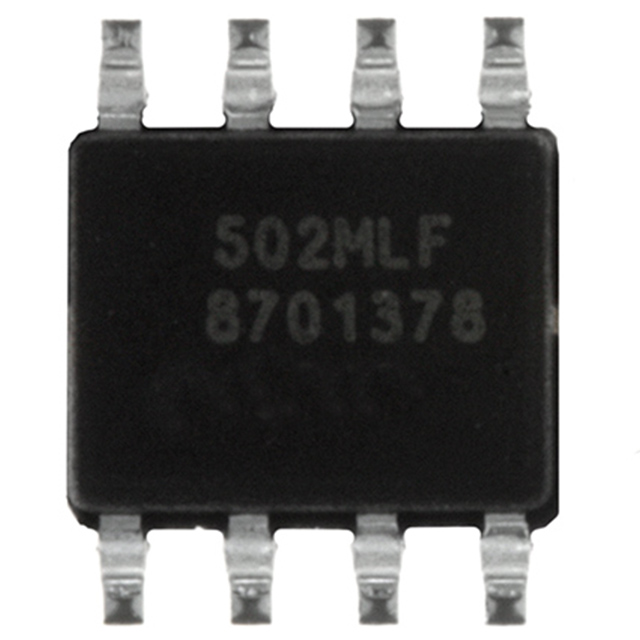

Description: IC CLK MULTIPLIER PLL 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ICS502
File Size: 67745 KB
Manufacturer: ICST [Integrated Circuit Systems]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICS1493-17
File Size: 252572 KB
Manufacturer: ICST
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICS1493-17
File Size: 252572 KB
Manufacturer: ICST
Download : Click here to Download
The ICS502 LOCO™ is the most cost effective way to generate a high quality, high frequency clock output and a reference from a low frequency crystal or clock input. The name LOCO stands for LOw Cost Oscillator, as it is esigned to replace crystal oscillators in most electronic systems. Using Phase-Locked-Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 160 MHz.
Stored in the chip's ROM is the ability to generate 6 different multiplication factors, allowing one chip to output many common frequencies (see page 2).
| Parameter | Conditions |
Minimum |
Typical |
Maximum |
Units |
| Supply Voltage, VDD | Referenced to GND |
7 |
V | ||
| Inputs | Referenced to GND |
-0.5 |
VDD+0.5 |
V | |
| Clock Output | Referenced to GND |
-0.5 |
VDD+0.5 |
V | |
| Ambient Operating Temperature |
0 |
70 |
|||
| ICS512MI only |
-40 |
85 |
|||
| Soldering Temperature | Max of 10 seconds |
260 |
|||
| Storage temperature |
-65 |
150 |
| Technical/Catalog Information | ICS502MLF |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Integrated Circuits (ICs) |
| Type | PLL Clock Multiplier |
| Voltage - Supply | 3 V ~ 5.5 V |
| Number of Outputs | 1 |
| Input | Clock, Crystal |
| Output | CMOS |
| Frequency-Max | 190MHz |
| Package / Case | 8-SOIC |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ICS502MLF ICS502MLF 800 1037 5 ND 80010375ND 800-1037-5 |
